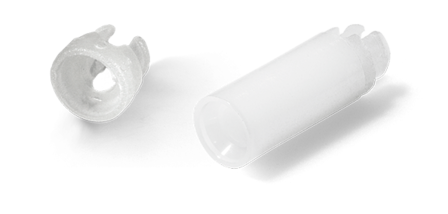

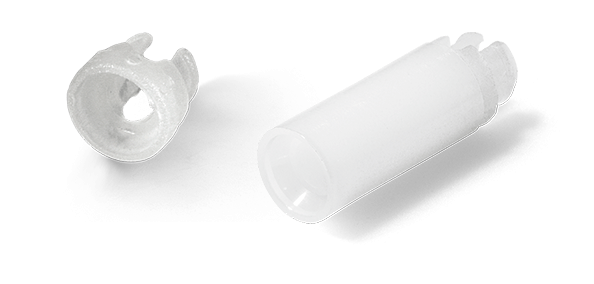

PCB spacer LPR902M3
One-sided snap-in spacer with additional M3 screw. For spacer lengths from 3.2 to 15.9 mm. Easy to fit and stackable.
| 402412 LPR 9020-M3 | 402413 LPR 9021-M3 | 402414 LPR 9022-M3 | 402415 LPR 9023-M3 | 402416 LPR 9024-M3 | 402417 LPR 9025-M3 | |
|---|---|---|---|---|---|---|
| Distance height in mm | 3,2 | 4,8 | 6,4 | 9,5 | 12,7 | 15,9 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Female thread | Female thread | Female thread | Female thread | Female thread | Female thread |
| Ø Female thread in mm | M3 | M3 | M3 | M3 | M3 | M3 |
| Outer Diameter body in mm | 6,6 | 6,6 | 6,6 | 6,6 | 6,6 | 6,6 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (A "top") in mm | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 |
| Overlap (A "top") in mm | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
| 402412 LPR 9020-M3 | 402413 LPR 9021-M3 | 402414 LPR 9022-M3 | 402415 LPR 9023-M3 | 402416 LPR 9024-M3 | 402417 LPR 9025-M3 | |
|---|---|---|---|---|---|---|
| Distance height in mm | 3,2 | 4,8 | 6,4 | 9,5 | 12,7 | 15,9 |
| Mounting (A "top") | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock | Snap lock |
| Mounting (B "bottom") | Female thread | Female thread | Female thread | Female thread | Female thread | Female thread |
| Ø Female thread in mm | M3 | M3 | M3 | M3 | M3 | M3 |
| Outer Diameter body in mm | 6,6 | 6,6 | 6,6 | 6,6 | 6,6 | 6,6 |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
| Colour | natural | natural | natural | natural | natural | natural |
| Ø Mounting hole (A "top") in mm | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 | 4,75 |
| Overlap (A "top") in mm | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Panel thickness (A "top") in mm | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 | 1,57 |
