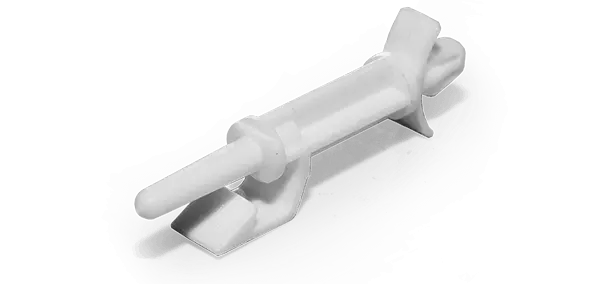

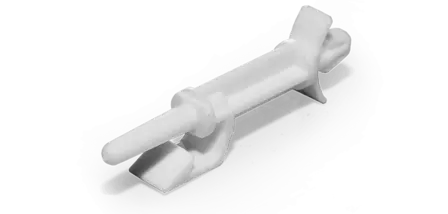

PCB Spacer LPR885

Snap-in spacers from 6.4mm to 25.4mm with additional PCB holder on one side

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402407
LPR 8852
402408
LPR 8853
402409
LPR 8854
402410
LPR 8855
402411
LPR 8857
404101
LPR 8856
Distance height in mm 9,5 12,7 15,9 19,1 25,4 22,2
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-0
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +110°C
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 4,75 4,75 4,75 4,75 4,75 4,75
Overlap (B "bottom") in mm 5,6 5,6 5,6 5,6 5,6 5,6
Ø Mounting hole (A "top") in mm 4,0 4,0 4,0 4,0 4,0 4,0
Overlap (A "top") in mm 15,2 15,2 15,2 15,2 15,2 15,2
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98
