Drawing spacer LPR870

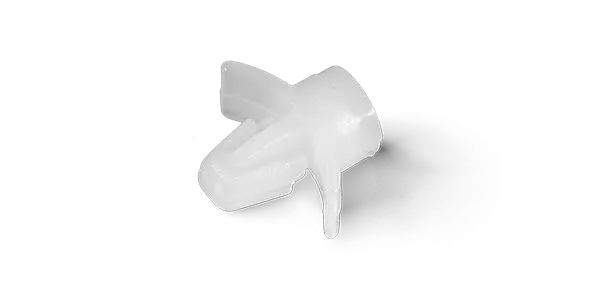

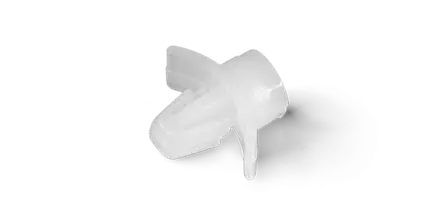

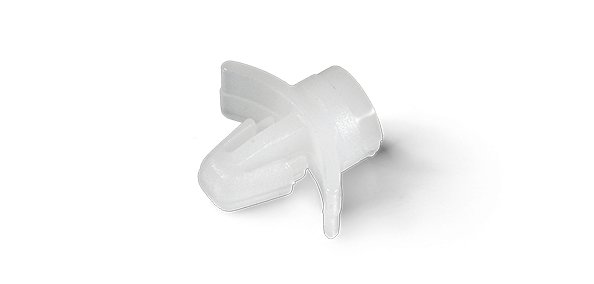

Spacer LPR870

PCB spacer LPR870

Spacer to secure the PCB when bridging longer distances. On one side seating and snap-on mounting on the other. For distance length 4.8 to 22.2 mm.

Description
Close
Product description: PCB spacer LPR870

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402387
LPR 8701
402388
LPR 8702
402389
LPR 8703
402390
LPR 8705
402391
LPR 8706
402392
LPR 8707
Distance height in mm 4,8 6,4 9,5 12,7 15,9 19,1
Mounting (A "top") Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface Supporting surface
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 7,1 7,1 7,1 7,1 7,1 7,1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 4,75 4,75 4,75 4,75 4,75 4,75
Overlap (B "bottom") in mm 5,6 5,6 5,6 5,6 5,6 5,6
Panel thickness (B "bottom") in mm 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98
