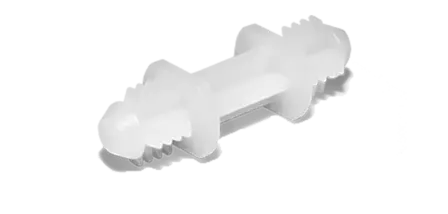

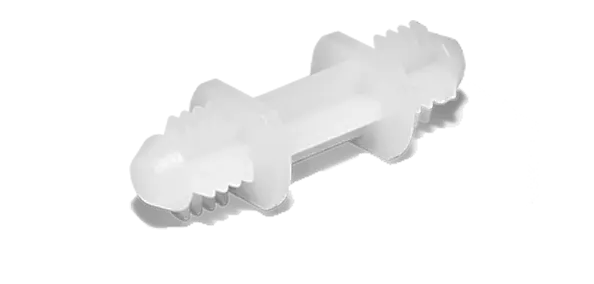

PCB spacer LPR862M

PCB spacer LPR862M

Spacers with snap-in mounting on both sides, in lengths 3 to 20 mm

Description
Close
Product description: PCB spacer LPR862M

Product variants

10 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407618
LPR 8620-M
407663
LPR 8621-M
407664
LPR 8622-M
407665
LPR 8623-M
407666
LPR 8624-M
407667
LPR 8625-M
407681
LPR 8626-M
407682
LPR 8627-M
407683
LPR 8628-M
407684
LPR 8629-M
Distance height in mm 3,0 4,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0
Mounting (A "top") 8 8 8 8 8 8 8 8 8 8
Mounting (B "bottom") 8 8 8 8 8 8 8 8 8 8
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C
Colour natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9
Overlap (B "bottom") in mm 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7
Ø Mounting hole (A "top") in mm 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9
Overlap (A "top") in mm 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7
Panel thickness (A "top") in mm 6,35 6,35 6,35 6,35 6,35 6,35 6,35 6,35 6,35 6,35
Panel thickness (B "bottom") in mm 6,35 6,35 6,35 6,35 6,35 6,35 6,35 6,35 6,35 6,35
