Drawing spacer LPR85M

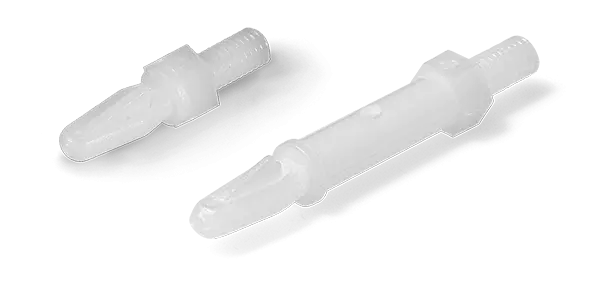

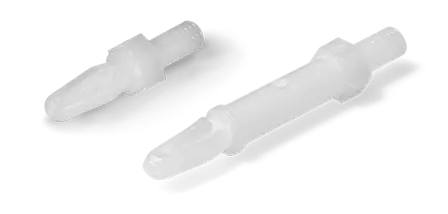

Spacer LPR85M

PCB spacer LPR85M

Spacer with M3 thread on one and snap-on mounting on the other side. For distance length 3.2 to 25.4 mm.

Description
Close
Product description: PCB spacer LPR85M

Product variants

12 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403250
LPR 8520-M3-MINI OHNE MUTTER
403251
LPR 8520-M3-MINI MIT MUTTER M3
403329
LPR 8523-M3-MINI OHNE MUTTER
403330
LPR 8523-M3-MINI MIT MUTTER M3
403348
LPR 8521-M3-MINI OHNE MUTTER
403349
LPR 8521-M3-MINI MIT MUTTER M3
403350
LPR 8522-M3-MINI OHNE MUTTER
403351
LPR 8522-M3-MINI MIT MUTTER M3
403352
LPR 8518-M3-MINI OHNE MUTTER
403353
LPR 8518-M3-MINI MIT MUTTER M3
403354
LPR 8519-M3-MINI OHNE MUTTER
403355
LPR 8519-M3-MINI MIT MUTTER M3
Distance height in mm 6,4 6,4 15,9 15,9 9,5 9,5 12,7 12,7 3,2 3,2 4,8 4,8
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread Male thread
Ø Male thread in mm M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18
Overlap (A "top") in mm 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7 8,7
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
