Drawing spacer LPR850N

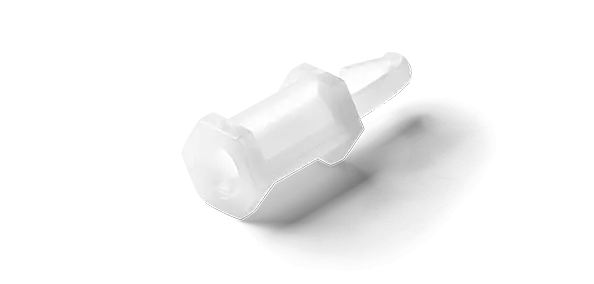

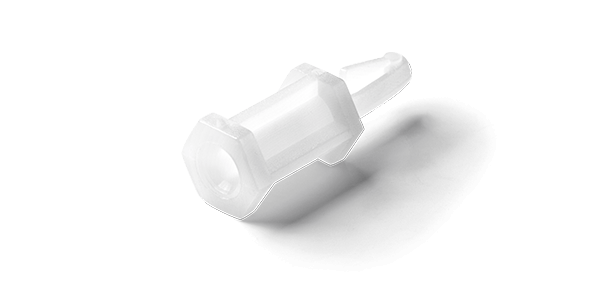

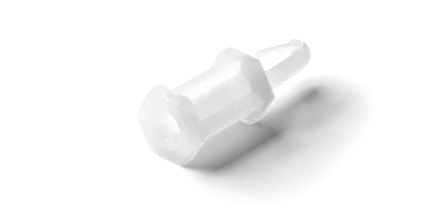

Spacer LPR850N

PCB spacer LPR850N

Spacer with M3.5 female thread on one side and snap-on mounting on the other. Easily releasable by pressing the nose. For distance length 6.4 to 35.7 mm.

Description
Close
Product description: PCB spacer LPR850N

Product variants

8 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
401027
LPR 8500-N
401029
LPR 8501-N
401030
LPR 8502-N
401031
LPR 8503 N
401032
LPR 8504-N
401033
LPR 8505 N
401034
LPR 8506-N
401035
LPR 8507-N
Distance height in mm 6,4 9,5 12,7 15,9 19,1 22,2 28,6 35,7
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Female thread Female thread Female thread Female thread Female thread Female thread Female thread Female thread
Ø Female thread in mm M3,5 M3,5 M3,5 M3,5 M3,5 M3,5 M3,5 M3,5
Thread depth (inside) in mm 5,20 7,90 7,90 7,90 7,90 7,90 7,90 7,90
Outer Diameter body in mm 7,9 7,9 7,9 7,9 7,9 7,9 7,9 7,9
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C
Colour natural natural natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00 4,00 4,00 4,00 4,00
Overlap (A "top") in mm 10,2 10,2 10,2 10,2 10,2 10,2 10,2 10,2
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
