Drawing spacer LPR840

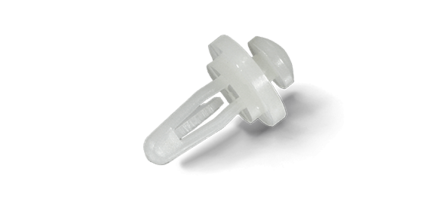

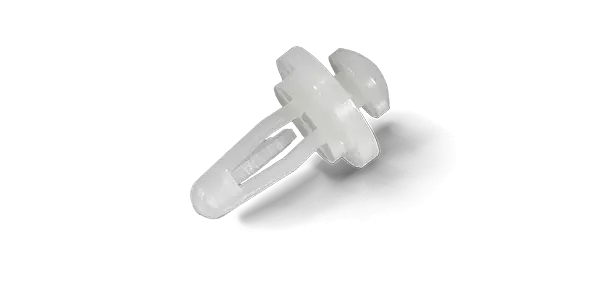

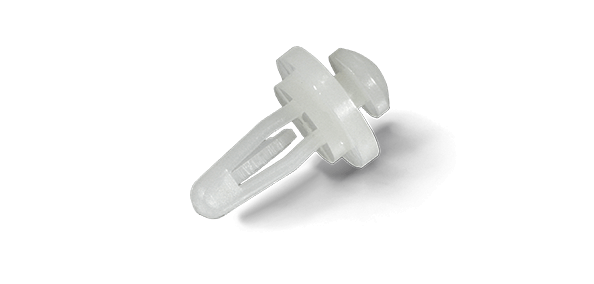

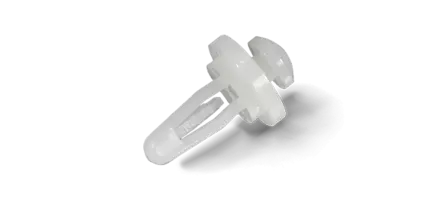

Spacer LPR840

PCB spacer LPR840

Spacer for key slot holes on one side and snap-on mounting on the other. Easily releasable by pressing the nose. For distance length 3.2 to 12.7 mm.

Description
Close
Product description: PCB spacer LPR840

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402258
LPR 8401
402259
LPR 8402
402260
LPR 8403
402261
LPR 8404
Distance height in mm 3,2 6,4 9,5 12,7
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Mounting slot Mounting slot Mounting slot Mounting slot
Outer Diameter body in mm 7,1 7,1 7,1 7,1
Material nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural
Overlap (B "bottom") in mm 2,4 2,4 2,4 2,4
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00
Overlap (A "top") in mm 10,2 10,2 10,2 10,2
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 1,57 1,57 1,57 1,57
