Drawing spacer LPR833M

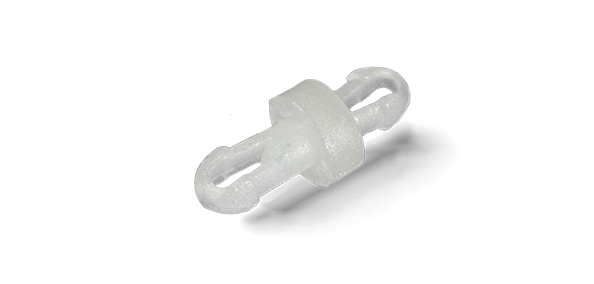

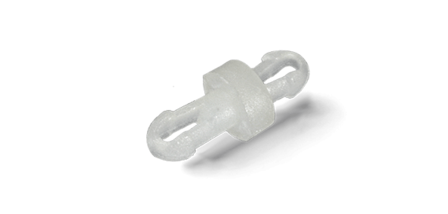

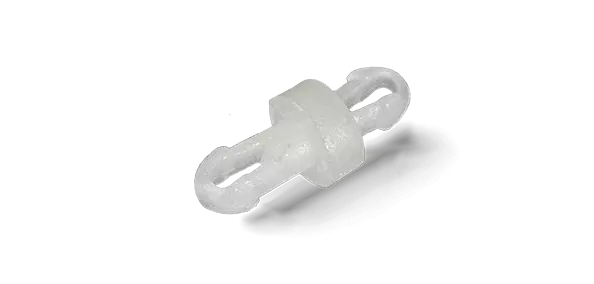

Spacer LPR833M

PCB spacer LPR833M

Spacer with snap-on mounting on both sides for distance length 2 to 22 mm. For mounting max. 3.6 mm strong panels.

Description
Close
Product description: PCB spacer LPR833M

Product variants

11 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
405155
LPR 8330-MINI-M
405156
LPR 8331-MINI-M
405157
LPR 8332-MINI-M
405158
LPR 8333-MINI-M
405159
LPR 8334-MINI-M
405160
LPR 8335-MINI-M
405161
LPR 8336-MINI-M
405162
LPR 8337-MINI-M
405163
LPR 8338-MINI-M
405164
LPR 8339-MINI-M
405165
LPR 8340-MINI-M
Distance height in mm 2,0 4,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 22,0
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50
Overlap (B "bottom") in mm 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0
Ø Mounting hole (A "top") in mm 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50 2,50
Overlap (A "top") in mm 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0
Panel thickness (A "top") in mm 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6
Panel thickness (B "bottom") in mm 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6
