Drawing spacer LPR82N
Spacer LPR82N

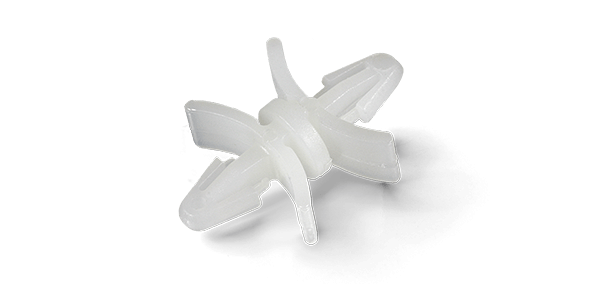

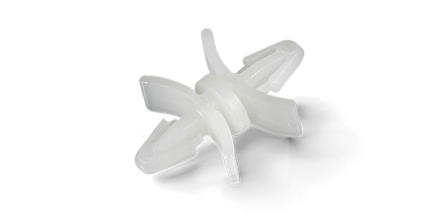

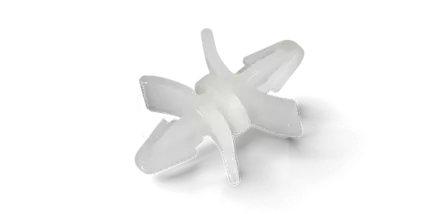

PCB spacer LPR82N

Spacer with snap-on mounting on both sides for distance length 4.8 to 22.2 mm. Easily releasable by pressing the nose.

Description
Close
Product description: PCB spacer LPR82N

Product variants

7 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
401010
LPR 8201-N
401011
LPR 8202-N
401012
LPR 8203-N
401013
LPR 8204-N
401014
LPR 8205-N
401015
LPR 8206-N
401016
LPR 8207-N
Distance height in mm 4,8 6,4 9,5 12,7 15,9 19,1 22,2
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 7,1 7,1 7,1 7,1 7,1 7,1 7,1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 4,00 4,00 4,00 4,00 4,00 4,00 4,00
Overlap (B "bottom") in mm 5,6 5,6 5,6 5,6 5,6 5,6 5,6
Ø Mounting hole (A "top") in mm 4,00 4,00 4,00 4,00 4,00 4,00 4,00
Overlap (A "top") in mm 5,6 5,6 5,6 5,6 5,6 5,6 5,6
Panel thickness (A "top") in mm 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98
Panel thickness (B "bottom") in mm 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98 0,79 - 1,98
