Drawing spacer LPR82M

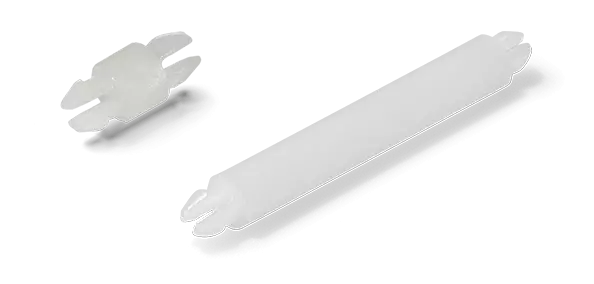

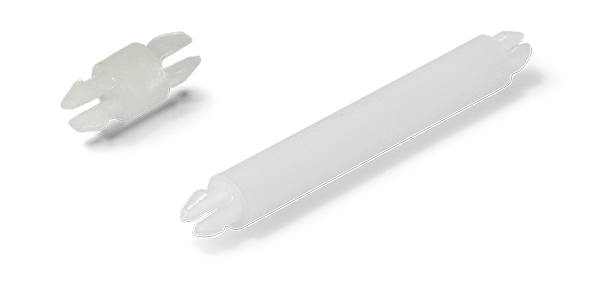

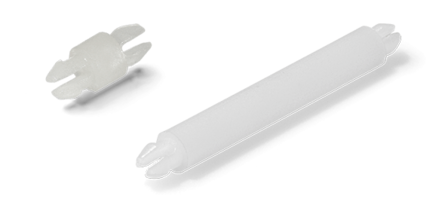

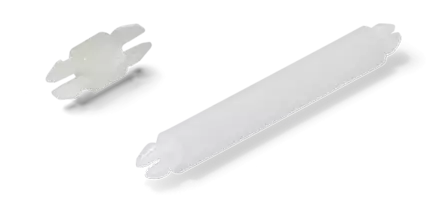

Spacer LPR82M

PCB spacer LPR82M

Spacer with snap-on mounting on both sides. For distance length 3.2 to 38.1 mm.

Description
Close
Product description: PCB spacer LPR82M

Product variants

16 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
401702
LPR 8257-MINI
402377
LPR 8251-MINI
402378
LPR 8252-MINI
402379
LPR 8253-MINI-B
402380
LPR 8254-MINI-A
402381
LPR 8255-MINI
402382
LPR 8256-MINI
402703
LPR 8258-MINI
402704
LPR 8259-MINI
402705
LPR 8260-MINI
402706
LPR 8261-MINI
402707
LPR 8262-MINI
402708
LPR 8263-MINI
403327
LPR 8254-MINI-B
404184
LPR 8253-MINI-C
433090
LPR 8253-MINI-A
Distance height in mm 19,1 3,2 4,8 6,4 9,5 12,7 15,9 22,2 25,4 28,6 31,8 34,9 38,1 11,1 7,9 5,8
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6 4,6
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C - -40°C - +75°C
Colour natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18
Overlap (B "bottom") in mm 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6 3,6
Ø Mounting hole (A "top") in mm 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18 3,18
Overlap (A "top") in mm 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8 3,8
Panel thickness (A "top") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
Panel thickness (B "bottom") in mm 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57 1,57
