Drawing spacer LPR82

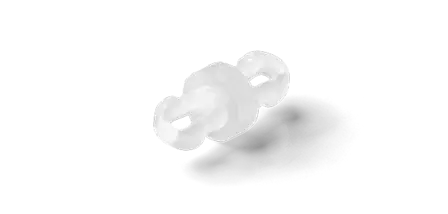

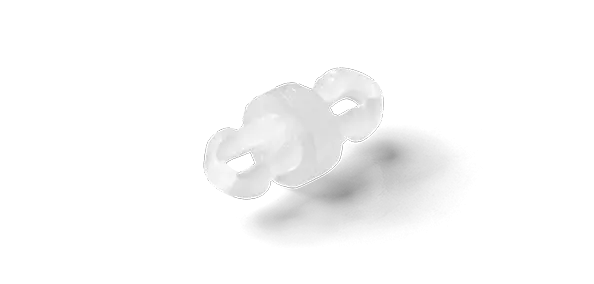

Spacer LPR82

PCB spacer LPR82

Miniature spacer with snap-on mounting on both sides for distance length 1.6 to 15.9 mm. For mounting max. 1.6 mm strong panels.

Description
Close
Product description: PCB spacer LPR82

Product variants

10 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404018
LPR 8231-MINI
404019
LPR 8232-MINI
404020
LPR 8233-MINI
404024
LPR 8237-MINI
404025
LPR 8238-MINI
404026
LPR 8239-MINI
404027
LPR 8240-MINI
409175
LPR 8235-MINI
409465
LPR 8234-MINI
409466
LPR 8236-MINI
Distance height in mm 1,6 3,2 4,8 11,1 12,7 14,3 15,9 7,9 6,4 9,5
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 4,4 4,4 4,4 4,4 4,4 4,4 4,4 4,4 4,4 4,4
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C -40°C - +85°C
Colour natural natural natural natural natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 2,54 2,54 2,54 2,54 2,54 2,54 2,54 2,54 2,54 2,54
Overlap (B "bottom") in mm 2 2 2 2 2 2 2 2 2 2
Ø Mounting hole (A "top") in mm 2,54 2,54 2,54 2,54 2,54 2,54 2,54 2,54 2,54 2,54
Overlap (A "top") in mm 2 2 2 2 2 2 2 2 2 2
Panel thickness (A "top") in mm 1,63 1,63 1,63 1,63 1,63 1,63 1,63 1,63 1,63 1,63
Panel thickness (B "bottom") in mm 1,63 1,63 1,63 1,63 1,63 1,63 1,63 1,63 1,63 1,63
