Drawing spacer LPR24
Spacer LPR24

PCB spacer LPR24

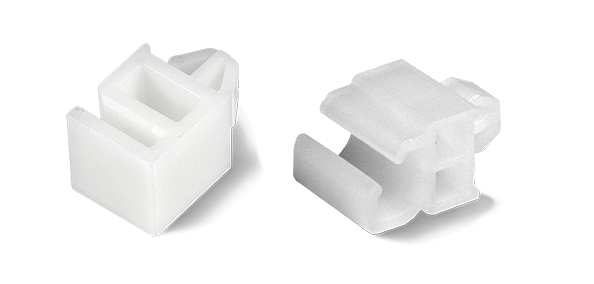

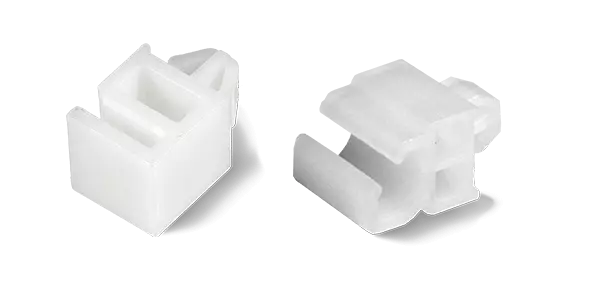

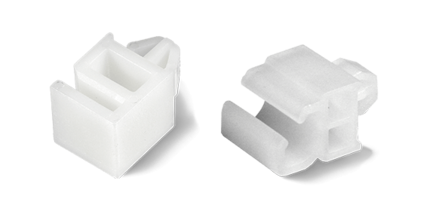

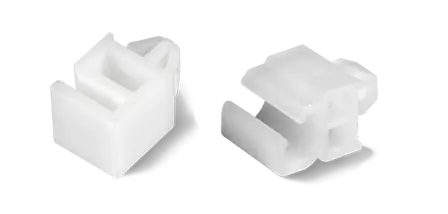

Spacer with snap-on mounting on one side and PCB holder on the other in two designs.

Description
Close
Product description: PCB spacer LPR24

Product variants

2 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402477
LPR 2401
402478
LPR 2402
Distance height in mm 10,0 11,0
Mounting (A "top") Corner mounting Corner mounting
Mounting (B "bottom") Snap lock Snap lock
Material nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2
Colour natural natural
Ø Mounting hole (B "bottom") in mm 6,35 x 7,5 7,0 x 5,6
Overlap (B "bottom") in mm 7,0 5,9
Panel thickness (A "top") in mm 0,8 - 2,2 -
Panel thickness (B "bottom") in mm 1,4 -
