Drawing spacer ESS785
Spacer ESS785

PCB spacer ESS785

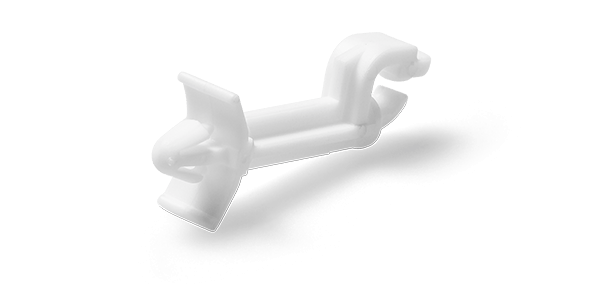

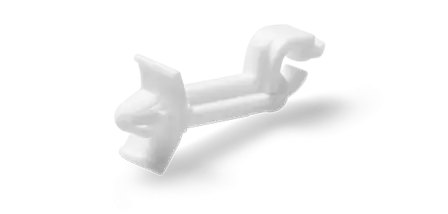

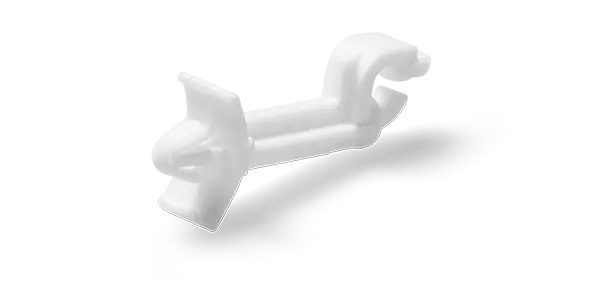

Spacer with snap-in mounting on one side and clamping function to hold PCBs laterally on the other. In the distance lengths 7.9 to 25.3 mm.

Description
Close
Product description: PCB spacer ESS785

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403872
ESS 7852-N
403873
ESS 7853-R
403874
ESS 7854-N
403875
ESS 7855-N
403876
ESS 7856-N
403877
ESS 7857-N
Distance height in mm 9,5 12,6 15,8 19,0 22,2 25,3
Mounting (A "top") Corner mounting Corner mounting Corner mounting Corner mounting Corner mounting Corner mounting
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 4,8 4,8 4,8 4,8 4,8 4,8
Overlap (B "bottom") in mm 5,0 5,0 5,0 5,0 5,0 5,0
Ø Mounting hole (A "top") in mm 4,0 4,0 4,0 4,0 4,0 4,0
Panel thickness (A "top") in mm 1,6 1,6 1,6 1,6 1,6 1,6
Panel thickness (B "bottom") in mm 0,5 - 2,0 0,5 - 2,0 0,5 - 2,0 0,5 - 2,0 0,5 - 2,0 0,5 - 2,0
