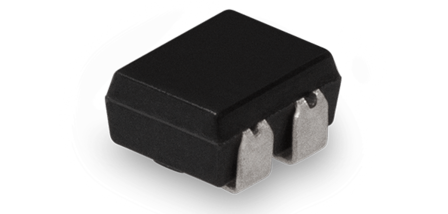

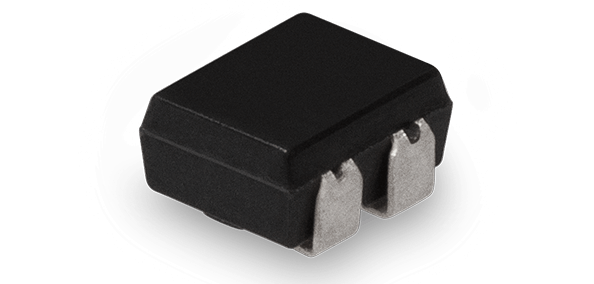

SMD resistor MMU as voltage divider - metal foil

Highly temperature stable voltage divider up to 0.05W @125 °C in SMD design, excellent in harsh environments

  • Precision SMD voltage divider
  • Resistance values of 10 Ω…20 kΩ
  • Temperature coefficient from ±5ppm/°C absolute, matching ±1ppm/°C
  • Robust epoxy housing
  • Low induction and low noise
  • Very high accuracy and stability
Data sheet
Specifications
Technology Metal Foil
Design SMD Housing, Axial leaded
Power Rating ≤ 0,05W @125°C
Resistance Range 10Ω..20kΩ
Resistance Tolerance ±0,02%..±0,5% absolut
Temperature Coefficient ±5..±15 ppm/°C absolut
Max. Working Temperature +150 °C
Min. Working Temperature -65 °C
Description
MMU voltage dividers offer excellent reliability and stability ... more
Description
Close
Product description: SMD resistor MMU as voltage divider - metal foil

MMU voltage dividers offer excellent reliability and stability in harsh environments due to their metal foil technology. The SMD resistors are very temperature stable up to 0.05W @125 °C and are available in resistance values of 10 Ω...20 kΩ. Their design gives them low inductance and low noise. Typical applications include weighing systems, high precision amplifiers, measuring bridges and control systems.
