Drawing shrinking tube POLY-BV

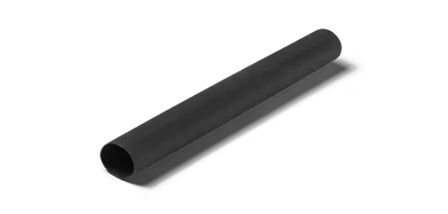

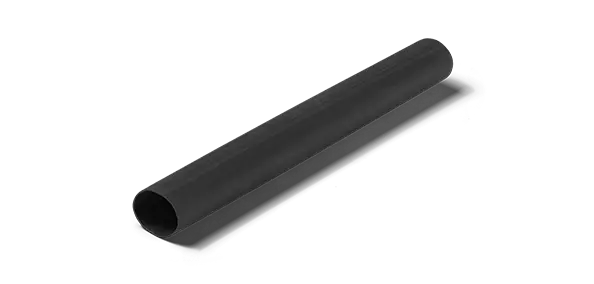

Shrinking tube POLY-BV

Shrinking tube POLY-BV

Cross-linked polyolefin with shrink ratio 2:1 from Ø1.2 to 150 mm (0.6 to 76 mm) in black. On request in red, blue, yellow, green, white, purple, brown

Description
Close
Product description: Shrinking tube POLY-BV

Product variants

22 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
401577
POLY-BV SCHLAUCH 1,20 SCHWARZ
401597
POLY-BV SCHLAUCH 12,70 SCHWARZ
401626
POLY-BV-SCHLAUCH 1,6 SCHWARZ
401649
POLY-BV SCHLAUCH 19,00 SCHWARZ
401670
POLY-BV SCHLAUCH 2,4 SCHWARZ
401691
POLY-BV SCHLAUCH 25,40 SCHWARZ
401714
POLY-BV SCHLAUCH 3,20 SCHWARZ
401738
POLY-BV SCHLAUCH 38,10 SCHWARZ
401755
POLY-BV SCHLAUCH 4,8 SCHWARZ
401800
POLY-BV SCHLAUCH 6,35 SCHWARZ
401837
POLY-BV SCHLAUCH 9,50 SCHWARZ
402804
POLY-BV SCHLAUCH 76,2 SCHWARZ
404444
POLY-BV SCHLAUCH 3,20 SCHWARZ
405093
POLY-BV SCHLAUCH 4,80 SCHWARZ
405168
POLY-BV SCHLAUCH 1,60 SCHWARZ
405558
POLY-BV SCHLAUCH 38,10 SCHWARZ
405603
POLY-BV SCHLAUCH 19,00 SCHWARZ
405743
POLY-BV SCHLAUCH 2,40 SCHWARZ
405747
POLY-BV SCHLAUCH 6,4 SCHWARZ
406450
POLY-BV 2:1 SCHLAUCH 19,1 SCHWARZ
406586
POLY-BV SCHLAUCH 4,8 SCHWARZ
411366
POLY-BV SCHLAUCH 102,0 SCHWARZ
Material polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked polyolefin, cross-linked
Temperature range -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +125°C -55°C - +135°C -55°C - +135°C -55°C - +125°C
Colour black black black black black black black black black black black black black black black black black black black black black black
Inner Ø after shrinking 0,6 6,4 0,8 9,5 1,2 12,7 1,6 19,0 2,4 3,2 4,7 38,1 1,6 2,4 0,8 19,0 9,5 1,2 3,2 9,5 2,4 50,8
Inner Ø before shrinking 1,2 12,7 1,6 19,0 2,4 25,4 3,2 38,10 4,8 6,4 9,5 76,2 3,2 4,8 1,6 38,1 19,0 2,4 6,4 19,1 4,8 102,0
Shrunk wall thickness in mm 0,33 0,65 0,36 0,8 0,44 0,9 0,44 1,0 0,51 0,56 0,56 1,2 0,44 0,51 0,36 1,0 0,8 0,44 0,56 0,9 0,6 1,3
Shrink rate 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1 2:1
Length in meter 1,22 1,22 1,22 1,22 1,22 1,22 1,22 1,22 1,22 1,22 1,22 1,22 150 (Rolle) 75 (Rolle) 150 (Rolle) 30 (Rolle) 30 (Rolle) 150 (Rolle) 75 (Rolle) 1,22 1,22 15 (Rolle)
Shrink temperature 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C 100°C - - 100°C
Releases UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 UL 224 125°C VW-1 600V file E204071 - - UL 224 125°C VW-1 600V file E204071
