Drawing shock absorber ELM-DE

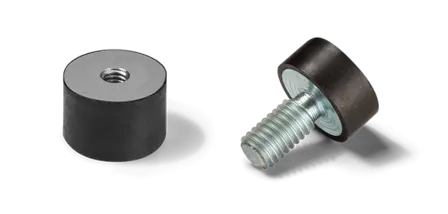

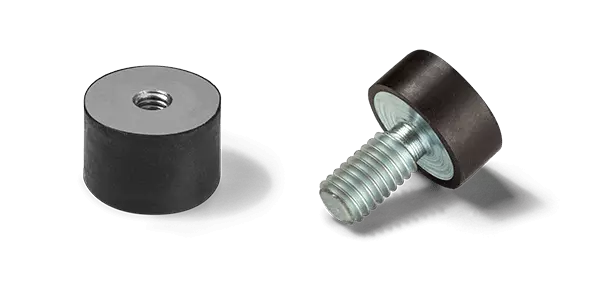

Shock absorber ELM-DE

Shock absober ELM-DE

Shock absorbers in types D and E in numerous Shore hardnesses. With threads from M4 to M6

Description
Close
Product description: Shock absober ELM-DE

Product variants

19 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404094
ELM 15X10-D-M4/13 SHORE 57-S
404114
ELM 7X3-D-M3/6 SHORE 57-S
404115
ELM 9X7-D-M4/12 SHORE 57-S
404116
ELM 10X10-D-M4/10 SHORE 57
404118
ELM 10X10-E-M4/ SHORE57
404119
ELM 15X10-E-M4 SHORE 57-S
406312
ELM 20X15-D-M6/15 SHORE 57
408974
ELM 15X15-D-M4/SHORE 57
408975
ELM 15X15-E-M4/SHORE 57
408978
ELM 20X15-E-M6/SHORE 57
408979
ELM 20X20-D-M6/SHORE 57
408980
ELM 20X20-E-M6/SHORE 57
408981
ELM 20X25-D-M6/15 SHORE 57
408982
ELM 20X25-E-M6/SHORE 57
408983
ELM 25X15-D-M6/SHORE 57
408984
ELM 25X15-E-M6/SHORE 57
408985
ELM 25X20-D-M6/18 SHORE 57
408986
ELM 25X20-E-M6/SHORE 57
410523
ELM 7X3-D-M3/6 SHORE 43-S
Model Type D Type D Type D Type D Type E Type E Type D Type D Type E Type E Type D Type E Type D Type E Type D Type E Type D Type E Type D
Thread combinations Foot with male thread Foot with male thread Foot with male thread Foot with male thread Female thread Female thread Foot with male thread Foot with male thread Female thread Female thread Foot with male thread Female thread Foot with male thread Female thread Foot with male thread Female thread Foot with male thread Female thread Foot with male thread
Colour black black black black black black black black black black black - black black black black black black black
Thread G2 M4 M3 M4 M4 M4 M4 M6 M4 M4 M6 M6 M6 M6 M6 M6 M6 M6 M6 M3
Thread length "L" in mm 13 6 12 10 - - 15 13 - - 15 - 15 - 18 - 18 - 6
Thread depth (inside) in mm - - - - 4 4,2 - - 4 6 - 6 - 6 - 6 - 6 -
Shore hardness 57 57 57 57 - 57 57 57 57 57 57 57 57 57 57 57 57 57 43
Material of elastomer Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber Natural rubber
Ø Foot in mm 15 7 9 10 10 15 20 15 15 20 20 20 20 20 25 25 25 25 7
Foot height in mm 10 3 7 10 10 10 15 15 15 15 20 20 25 25 15 15 20 20 3
