Shock absorber ELM-ABC

Shock absober ELM-ABC

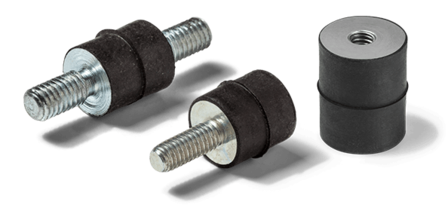

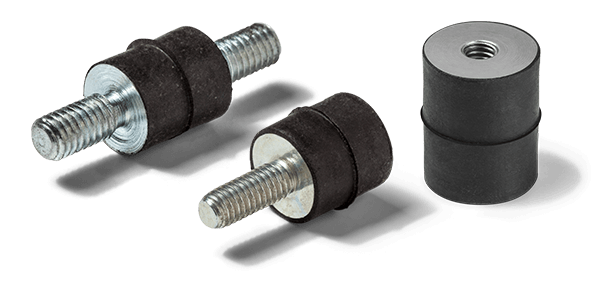

Dampers in designs A, B and C in numerous Shore hardnesses. With threads on both sides from M3 to M6

Product variants

Can't find the product you want in the list? It is in the drawing! Just click here: Product enquiry

	403802 ELM 10X10-A-M4/10 SHORE 57	403920 ELM 8X8-A-M3/6 SHORE 57	403921 ELM 8X8-B-M3/6 SHORE 57	403931 ELM 15X15-B-M4/13 SHORE 57	404090 ELM 8X6-A-M3/6 SHORE 57	404091 ELM 8X6-B-M3/6 SHORE 57	404102 ELM 6X7-A-M3/6 SHORE 57	404103 ELM 9X12-A-M4/10 SHORE 57-S	404104 ELM 15X15-A-M4/13 SHORE 57	404105 ELM 20X20-A-M6/15 SHORE 57	404106 ELM 10X10-B-M4/10 SHORE 57	404107 ELM 25X20-A-M6-18 SHORE 57	404108 ELM 20X20-B-M6/15 SHORE 57	404109 ELM 8X8-C-M3 SHORE 57	404110 ELM 10X10-C-M4 SHORE 57	404111 ELM 15X15-C-M4 SHORE 57	404112 ELM 20X20-C-M6 SHORE 57	404466 ELM 6X7-A-M3/6 SHORE 43	405963 ELM 8X8-B-M3/6 SHORE 43	406054 ELM 10X10-B-M4/10 SHORE 43	406590 ELM 10X10-C-M4 SHORE 68	406638 ELM 30X20-B-M8/20 SHORE 57	407508 ELM 30X30-B-M8/20 SHORE 57	407632 ELM 25X20-A-M6-18 SHORE 68	407933 ELM 20X15-A-M6/15 SHORE 57	407949 ELM 8X8-A-M3/6 SHORE 43	407951 ELM 10X10-C-M4 SHORE 43	408476 ELM 10X10-A-M4/10 SHORE 68	408477 ELM 20X20-B-M6/15 SHORE 68	408478 ELM 10X10-B-M4/10 SHORE 68	408676 ELM 8X6-B-M3/6 SHORE 43	408677 ELM 8X6-B-M3/6 SHORE 68	408932 ELM 10X8-A-M4/SHORE 57-S	408933 ELM 10X8-B-M4/SHORE 57-S	408935 ELM 10X15-B-M4 SHORE 57-S	408950 ELM 15X8-A-M4/SHORE 57	408953 ELM 15X20-A-M4/SHORE 57	408954 ELM 15X20-B-M4/SHORE 57	408955 ELM 15X20-C-M4/SHORE 57	408964 ELM 20X15-B-M6/SHORE 57	408965 ELM 20X25-A-M6/SHORE 57	408966 ELM 20X25-B-M6/SHORE 57	408967 ELM 20X25-C-M6 SHORE 57	408968 ELM 25X10-A-M6/SHORE 57	408969 ELM 25X15-A-M6/SHORE 57	408970 ELM 25X15-B-M6/SHORE 57	409286 ELM 8X8-A-M3/6 SHORE 68
Model	Type A	Type A	Type B	Type B	Type A	Type B	Type A	Type A	Type A	Type A	Type B	Type A	Type B	Type C	Type C	Type C	Type C	Type A	Type B	Type B	Type C	Type B	Type B	Type A	Type A	Type A	Type C	Type A	Type B	Type B	Type B	Type B	Type A	Type B	Type B	Type A	Type A	Type B	Type C	Type B	Type A	Type B	Type C	Type A	Type A	Type B	Type A
Thread combinations	Male & male thread	Male & male thread	Female & male thread	Female & male thread	Male & male thread	Female & male thread	Male & male thread	Male & male thread	Male & male thread	Male & male thread	Female & male thread	Male & male thread	Female & male thread	Female & female thread	Female & female thread	Female & female thread	Female & female thread	Male & male thread	Female & male thread	Female & male thread	Female & female thread	Female & male thread	Female & male thread	Male & male thread	Male & male thread	Male & male thread	Female & female thread	Male & male thread	Female & male thread	Female & male thread	Female & male thread	Female & male thread	Male & male thread	Female & male thread	Female & male thread	Male & male thread	Male & male thread	Female & male thread	Female & female thread	Female & male thread	Male & male thread	Female & male thread	Female & female thread	Male & male thread	Male & male thread	Female & male thread	Male & male thread
Colour	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black	black
Thread G2	M4	M3	M3	M4	M3	M3	M3	M4	M4	M6	M4	M6	M6	M3	M4	M4	M6	M3	M3	M4	M4	M8	M8	M6	M6	M3	M4	M4	M6	M4	M3	M3	M4	M4	M4	M4	M4	M4	M4	M6	M6	M6	M6	M6	M6	M6	M3
Thread length "L" in mm	10	6	6	13	6	6	6	10	13	15	10	18	15	-	-	-	-	6	6	10	-	20	20	18	15	6	-	10	15	10	6	6	10	10	10	13	13	13	-	15	15	15	-	18	18	18	6
Thread depth (inside) in mm	-	-	3,5	4,2	-	2,1	-	-	-	-	4	-	6,5	2,1	3,1	4	4,5	-	3	4	3	8	8	-	-	-	3	-	6	4	3	3	-	3	4	-	-	4	4	6	-	6	6,5	-	-	6	-
Shore hardness	57	57	57	57	57	57	57	57	57	57	57	57	57	57	57	57	57	43	43	43	68	57	57	68	57	43	43	68	68	68	43	68	57	57	57	57	57	57	57	57	57	57	57	57	57	57	68
Material of elastomer	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber	Natural rubber
Ø Foot in mm	10	8	8	15	8	8	6	9	15	20	10	25	20	8	10	15	20	6	8	10	10	30	30	25	20	8	10	10	20	10	8	8	10	10	10	15	15	15	15	20	20	20	20	25	25	25	8
Foot height in mm	10	8	8	15	6	6	7	12	15	20	10	20	20	8	10	15	20	7	8	10	10	20	30	20	15	8	10	10	20	10	6	6	8	8	15	8	20	20	20	15	25	25	25	10	15	15	8
