Shear Beam force sensor KT803

Shear Beam KT803

Compact force sensor with integrated digital measuring amplifier and steel measuring body for measuring ranges up to 5 kN

  • Compact shear beam with integrated digital transducer
  • Output 0..10V, 4..20 mA @24 VSUP
  • Force transmission via M8-thread
  • Strain gauge
  • Steel measuring body
Design Shear Beam
Nominal Load max. 5 kN
Direction of Force Tension and Compression
Output Signal 0..10 V with integrated amplifier, 4..20 mA with integrated amplifier
Protection Class IP40
Amplifier With Digital Amplifier
Description
Close

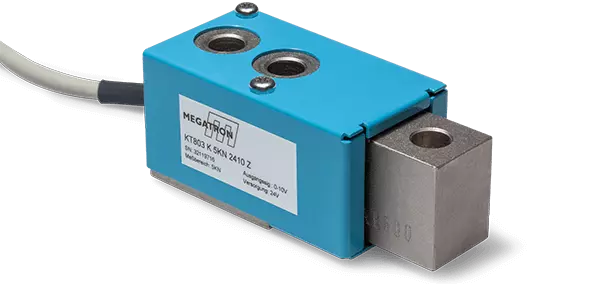

Product description: Shear Beam KT803

The KT803 force transducers are characterized in particular by their compact design, although they have an integrated digital measuring amplifier which delivers output signals of 0..10 V, 4..20 mA @ 24 VSUP. The force is introduced via the M8 internal thread for measuring ranges up to 5 kN for compressive or tensile forces. The steel measuring body works on the principle of the double bending beam. The mounting with two screws is simple and suitable for any flat, stable surface. The measuring principle of the Wheatstone strain gauge full bridge has proven itself over decades for this type of force sensor and ensures a long lifespan.
