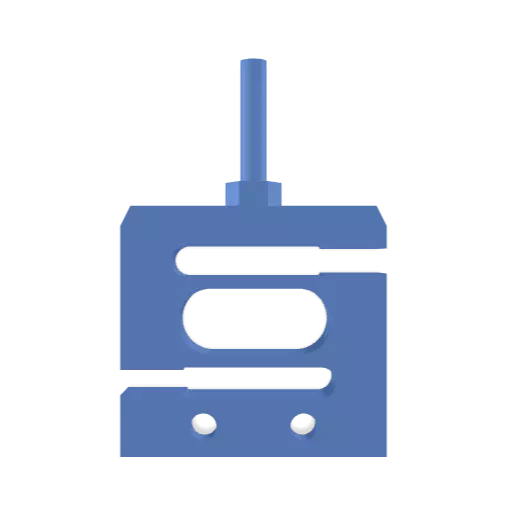

S-Beam Force Transducer KM500

S-Beam load cell KM500

Very compact S-Beam sensor with 500 N for integration in applications with confined space

  • Designed for integration in compact applications
  • Very compact S-Beam
  • Force input via M6 external thread
  • Aluminium load cell
  • IP54
DMS Wheatstone bridge circuit
Design S-Beam
Nominal Load From 0..500 N
Direction of Force Tension and Compression
Output Signal 2,0 mV/V
Amplifier Without Amplifier
Protection Class IP54
Product description: S-Beam load cell KM500

The load cells of the KM500 series with M6 outer thread are specially designed for integration in applications with confined space. The force is introduced via the external thread. The sensor is very compact according to the S-Beam principle and available with a measuring range of 500 N. The force transducer is offered without amplifier electronics, but can be combined with external signal conditioning and display devices.

  • Outer thread serves at the same time for the force introduction of the compressive or tensile forces
  • Calibration including measurement data
