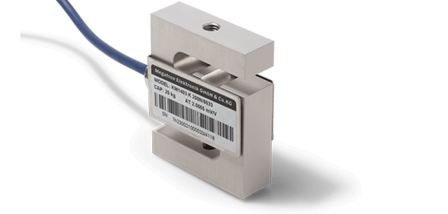

S-Beam load cell KM1403
S-Beam load cell KM1403

S-Beam load cell KM1403

S-beam force transducer with M8 thread up to 1 kN in IP54 suitable for industrial scales, batching and packaging systems

  • Strain gauge principle
  • Aluminium alloy
  • Force transmission via M8-thread for 50N…1kN
  • IP54 protection
  • Easy to install, stable and reliable
DMS Wheatstone bridge circuit
Data sheet
Compare
Remember
Specifications
Design S-Beam
Nominal Load 50 N, 100 N, 200 N, 500 N, 1 kN
Direction of Force Tension and Compression
Output Signal 2,0 mV/V
Protection Class IP54
Amplifier Without Amplifier
Description
The KM1403 series force transducers have the same dimensions for ... more
Description
Close
Product description: S-Beam load cell KM1403

The KM1403 series force transducers have the same dimensions for all the capacities offered. Due to their shape (S-beam), these transducers are particularly recommended for applications with tensile forces. The force is applied via an M8 female thread. The strain gauge principle (Wheatstone bridges) has provided optimum performance for decades and ensures a long service life.

Application example load cells in mobile machinery
