Rivet plastic PNKN

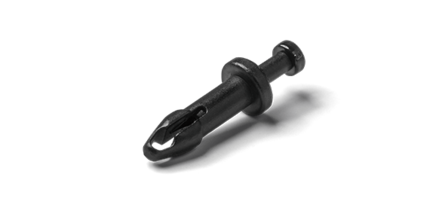

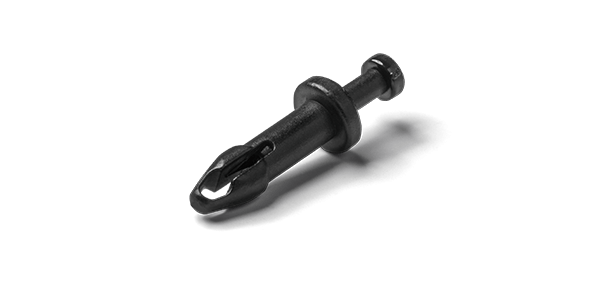

Plastic rivet PNKN

Expanding rivet for hole sizes 2.5 up to 3.3 mm and panel thickness from 2 to 6.7 mm

Description
Close
Product description: Plastic rivet PNKN

Product variants

7 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
411124
PNK N-2546 SCHWARZ
411125
PNK N-2727 SCHWARZ
411126
PNK N-3133 SCHWARZ
411127
PNK N-3139 SCHWARZ
411128
PNK N-3146 SCHWARZ
411129
PNK N-3167 SCHWARZ
411130
PNK N-3774 SCHWARZ
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -40 - 125 °C -40 - 125 °C -40 - 125 °C -40 - 125 °C -40 - 125 °C -40 - 125 °C -40 - 125 °C
Colour black black black black black black black
Ø Rivet head in mm 4,8 5,5 5,5 5,5 5,5 5,5 7,6
Height rivet head in mm 1,5 1,5 1,5 1,5 1,5 1,5 1,5
Shaft length in mm 8,8 7,6 8,1 7,6 9,4 11,6 11,9
Ø Mounting hole in mm 2,5 - 2,6 2,7 - 2,8 3,1 - 3,3 3,1 - 3,3 3,1 - 3,3 3,1 - 3,3 3,7 - 3,9
Panel thickness in mm 4,1 - 4,6 2,0 - 2,7 2,7 - 3,3 3,3 - 3,9 3,9 - 4,6 6,1 - 6,7 6,7 - 7,4
Model Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet Expanding rivet
