Drawing rivet plastic PNKBL
Rivet plastic PNKBL

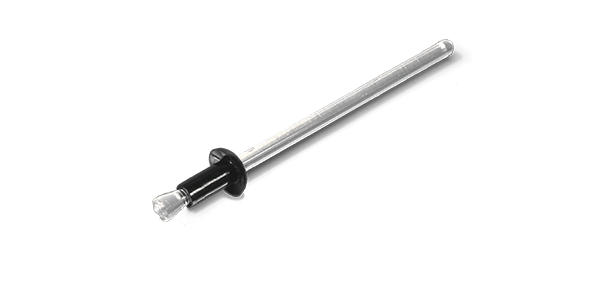

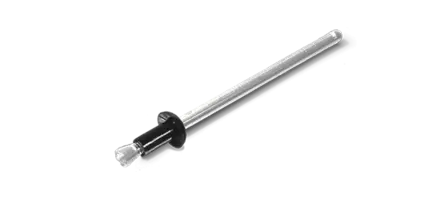

Plastic rivet PNKBL

Blind hole rivet for panel holes with 3.3 up to 5.7 mm and panel thickness 1 to 12 mm.

Description
Close
Product description: Plastic rivet PNKBL

Product variants

12 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
408731
PNK 3304
408818
PNK 3307
408819
PNK 3310
408820
PNK 4104
408821
PNK 4107
408822
PNK 4110
408823
PNK 4905
408824
PNK 4908
408825
PNK 4911
408826
PNK 5712
408827
PNK 5755
408828
PNK 5785
Material nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6
Temperature range -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C -40°C - +80°C
Colour black black black black black black black black black black black black
Ø Rivet head in mm 6,4 6,4 6,4 8 8 8 9,6 9,6 9,6 12 12 12
Height rivet head in mm 1,4 1,4 1,4 1,8 1,8 1,8 2 2 2 2,2 2,2 2,2
Rivet diameter in mm 3,2 3,2 3,2 4 4 4 4,8 4,8 4,8 5,6 5,6 5,6
Rivet length in mm 6,4 9,6 12,7 4,1 9,6 12,7 8 11,2 14,4 9,6 12,7 15,9
Diameter in mm 2,1 2,1 2,1 2,4 2,4 2,4 2,8 2,8 2,8 3,4 3,4 3,4
Ø Mounting hole in mm 3,3 3,3 3,3 4,1 4,1 4,1 4,9 4,9 4,9 5,7 5,7 5,7
Panel thickness in mm 1,0 - 4,0 4,0 - 7,0 7,0 - 10,0 1,0 - 4,0 4,0 - 7,0 7,0 - 10,0 1,5 - 5,0 5,0 - 8,0 8,0 - 11,0 2,0 - 5,5 5,5 - 8,5 8,5 - 12,0
Tensile strength in kg 12 12 12 18 18 18 28 28 28 40 40 40
Shear strength in kg 20 20 20 25 25 25 40 40 40 65 65 65
Model Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet Blind rivet
