Drawing rivet plastic LPW50
Rivet plastic LPW50

Plastic rivet LPW50

Rivet for screw mounting. The rivet head is round or square and covers holes Ø9.6 or 12.7 x 12.7 mm

Description
Close

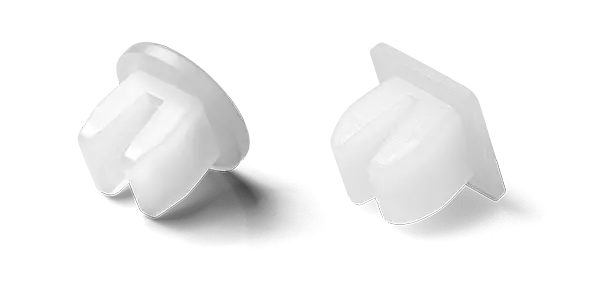

Product description: Plastic rivet LPW50

Product variants

2 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402482
LPW 503
402484
LPW 506
Material polyamide polyamide
Fire protection class UL 94 V-2 UL 94 V-2
Colour natural natural
Ø Rivet head in mm 9,6 12,7
Height rivet head in mm 0,8 1,6
Rivet length in mm 7,5 9,8
Ø Mounting hole in mm 6,35 - 6,45 6,88 - 7,37
Panel thickness in mm 2,8 - 3,2 0,8 - 3,1
Model Mini-expanding rivet Mini-expanding rivet
