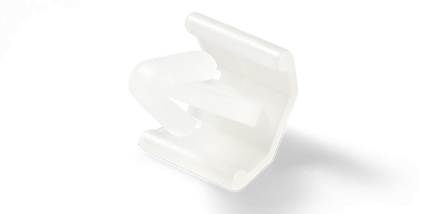

Mounting knob LPR955
Mounting knob for quick and easy connection of PCBs without tools. For panel thickness from 0.8 up to 15.1 mm
Product variants
401065 LPR 9550 MONTAGEKNOPF -2,4 MM | 401066 LPR 9551 MONTAGEKNOPF - 3,2 MM | 402418 LPR 9552 MONTAGEKNOPF - 5,6 MM | 402419 LPR 9553 MONTAGEKNOPF - 7,1 MM | 402420 LPR 9554 MONTAGEKNOPF - 9,5 MM | 403029 LPR 9555 MONTAGEKNOPF 11,1 MM | 403324 LPR 9556 MONTAGEKNOPF - 11,9 MM | 403325 LPR 9557 MONTAGEKNOPF - 13,5MM | 403326 LPR 9558 MONTAGEKNOPF - 15,1MM | |
---|---|---|---|---|---|---|---|---|---|
Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
Fire protection class | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 | UL 94 V-2 |
Temperature range | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C | -40°C - +85°C |
Colour | natural | natural | natural | natural | natural | natural | natural | natural | natural |
Ø Rivet head in mm | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 | 9,9 |
Height rivet head in mm | 4,8 | 4,8 | 4,8 | 4,8 | 4,8 | 4,8 | 4,8 | 4,8 | 4,8 |
Ø Mounting hole in mm | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 | 4,0 |
Panel thickness in mm | 0,8 - 2,4 | 2,4 - 4,0 | 4,0 - 5,6 | 5,6 - 7,1 | 7,1 - 8,7 | 8,7 - 10,3 | 10,3 - 11,9 | 11,9 - 13,5 | 13,5 - 15,1 |
Model | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet | Mini-expanding rivet |
