Potentiometric Linear Transducer CLP21

Potentiometric Linear Transducer CLP21

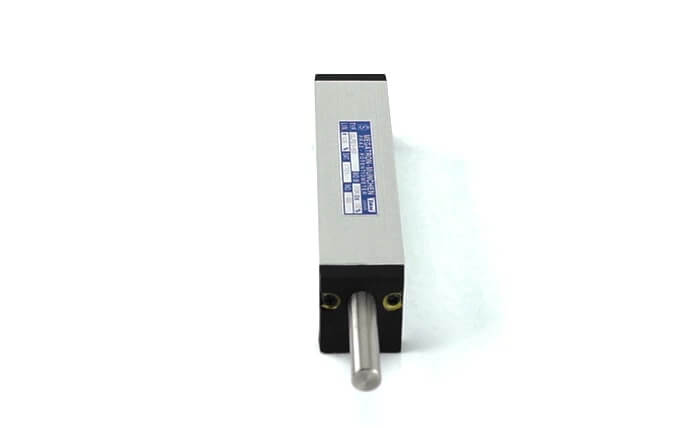

Compact and robust displacement sensor with front guided push rod in measuring lengths 15…100 mm

  • Compact and robust design
  • With front guided push rod
  • Available as a probe
  • Measuring lengths from 25 mm to 100 mm
  • Long lifetime and high accuracy
Effective electrical travel From 15 to 100 mm in 4 variants
Sensor Technology Potentiometric
Protection Class Up to IP54 (standard IP40)
Mechanical Detection Type Front side rod with/without spring return
Electrical Outlet Type Solder contacts
Mounting Mounting Brackets / Assembly Block
Actuating speed < 5 m/s
Resolution Analogue stepless
Ind. linearity (best) ±0.2% … ±0.7% (dep. o. travel & option)
Min. operating temperature -30 °C
Max. operating temperature +105 °C
Supply voltage Potentiometric
Electr. output signal (voltage - potentiometric)
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Product description: Potentiometric Linear Transducer CLP21

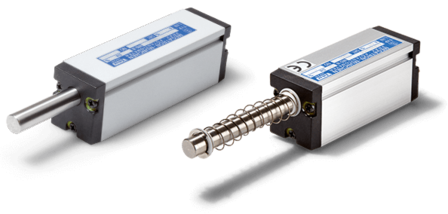

The displacement sensors of series CLP21 without spring return / CLPR21 with spring return are used in applications, which require a compact and robust linear transducer with long lifespan, high accuracy and front guided push rod with measuring length from 15 to 100 mm.

The compact and robust linear potentiometers of the series CLP(R)21 are designed for applications, which require a robust and compact linear transducer. In the displacement sensor series CLP(R)21 the mechanical detection of linear movement is done by a front guided push rod. The displacement sensor can be used both as a probe and with a guided push rod.
The potentiometric distance measurement is carried out with a high-resolution conductive plastic resistive element. Thanks to the Comolded conductive plastic technology, the compact displacement encoder has a very long lifetime and high accuracy due to its good linearity. Since the potentiometric measuring principle delivers absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences. Customization on the electrical connection (finishing with plug) or on the push rod (length, thread, flat ...) are available on request.
