Potentiometric linear transducer MBF

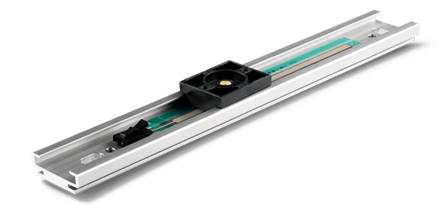

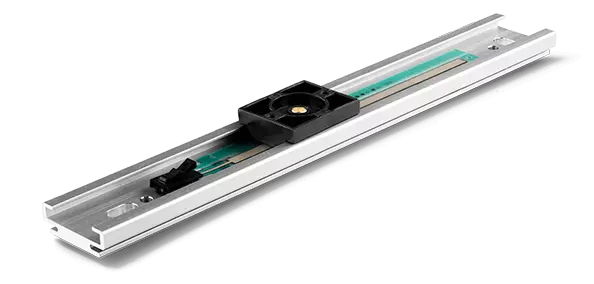

Potentiometric linear transducer (sensor foil system) in open and flat design with a space-saving slider construction for 50 up to 500 mm strokes.

  • 50 mm to 500 mm measuring travel
  • Over 3 million slider movements
  • Overall height 13.6 mm
  • Electrical connection with crimp plug
Potentiometer
Data sheet
Specifications
Effective electrical travel 50 up to 500 mm
Sensor Technology Potentiometric
Protection Class IP40 (optional IP45)
Mechanical Detection Type Guided cursor
Electrical Outlet Type Connector
Mounting Screw Mounting / Bore Holes
Actuating speed < 3 m/s
Resolution Analogue stepless
Ind. linearity (best) ≤ ±2%
Min. operating temperature -25 °C
Max. operating temperature +55 °C
Supply voltage Potentiometric
Electr. output signal (voltage - potentiometric)
Minimum overall length Medium (15 to 50 cm), Long (> 50 cm)
Description
The MBF displacement transducers are particularly characterized ... more
Description
Close
Product description: Potentiometric linear transducer MBF

The MBF displacement transducers are particularly characterized by their slim design with low overall height. The sensor foil is insensitive to external influences. The universal slider can be mechanically flexibly coupled to the application. The electrical connection is convenient thanks to the integrated crimp connector. MBF displacement sensors are available in measuring lengths from 50 mm to 500 mm.

With the MBF series of displacement sensors, everything is optimized for fast, easy and economical integration into the application. This is made visually clear by the slim, minimalist design with an overall height of only 13.6 mm. And it is made possible by the simple but convincing sensor technology: the MBF uses foil potentiometers. By applying mechanical pressure to the foil, a position-dependent, evaluable signal is generated.

The position is determined by the universal slider, which does not require a push rod. In addition, the top film layer protects the resistive track from external influences such as splash water. This means that all electrical functions are contained within the film, providing perfect measurement results even in adverse conditions. In addition, the electrical connection is particularly convenient thanks to the crimp connector.
