Drawing PCB guides LPR20

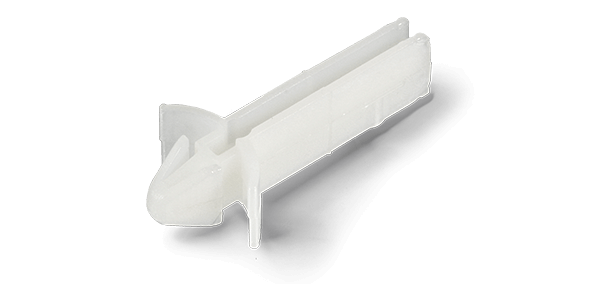

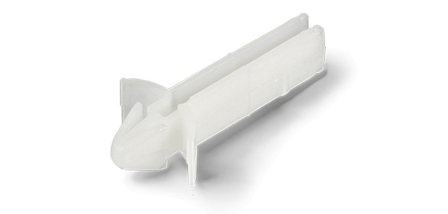

PCB guide LPR20

PCB guide LPR20

Plug-in vertical PCB guide in lengths from 22.4 to 76.2 mm for PCB thickness max. 1.9 mm

Description
Close
Product description: PCB guide LPR20

Product variants

3 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
400921
LPR 2010 LEITERPLATTENFÜHRUNG
400922
LPR 2011 LEITERPLATTENFÜHRUNG
401411
LPR 2021 LEITERPLATTENFÜHRUNG
Assembly type plug plug plug
Type Type A Type B Type B
Material nylon 66 nylon 66 nylon 66
Colour natural natural natural
(A) length-overall in mm 25,4 22,4 47,5
Groove depth in mm 2,3 3,2 3,2
Groove width in mm 1,9 1,9 1,9
Hole Diameter for mounting in mm 4,4x7,9 4,45x7,87 4,45x7,87
for PCB thickness 0,8 - 1,8 0,76 - 1,78 0,76 - 1,78
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range - 40°C - 85°C - 40°C - 85°C - 40°C - 85°C
