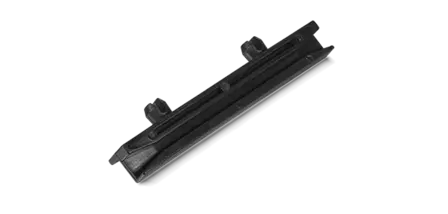

PCB guide ELBH1

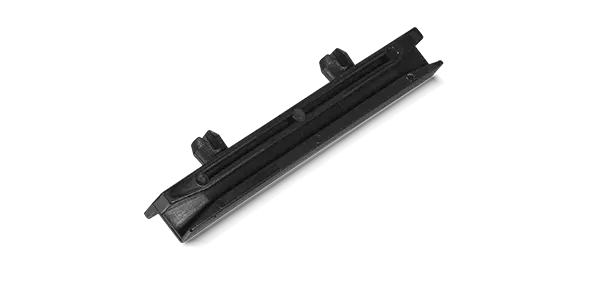

PCB guide ELBH1

Plug-in horizontal PCB guide in lengths from 50.8 to 152.4 mm for PCB thickness max. 2 mm, as PCB single or double holder version

Description
Close
Product description: PCB guide ELBH1

Product variants

9 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
405256
ELB H1-50 LEITERPLATTENFÜHRUNG
405257
ELB H1-63 LEITERPLATTENFÜHRUNG
405258
ELB H1-76 LEITERPLATTENFÜHRUNG
405259
ELB H1-88 LEITERPLATTENFÜHRUNG
405260
ELB H1-101 LEITERPLATTENFÜHRUNG
405261
ELB H1-114 LEITERPLATTENFÜHRUNG
405262
ELB H1-127 LEITERPLATTENFÜHRG.
405263
ELB H1-139 LEITERPLATTENFÜHRG.
405264
ELB H1-152 LEITERPLATTENFÜHRG.
Assembly type plug plug plug plug plug plug plug plug plug
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Colour black black black black black black black black black
(A) length-overall in mm 50,8 63,5 76,2 88,9 101,6 114,3 127,0 139,7 152,4
(B) Distance between fastening spigots in mm 25,4 38,1 50,8 63,5 76,2 88,9 101,6 114,3 127,0
Groove depth in mm 2,2 2,2 2,2 2,2 2,2 2,2 2,2 2,2 2,2
Groove width in mm 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0 2,0
for PCB thickness 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6 1,6
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
