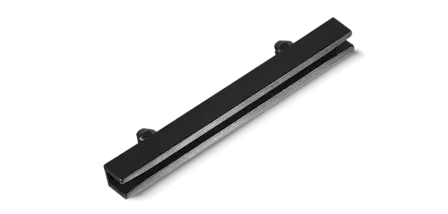

PCB guide ELBH

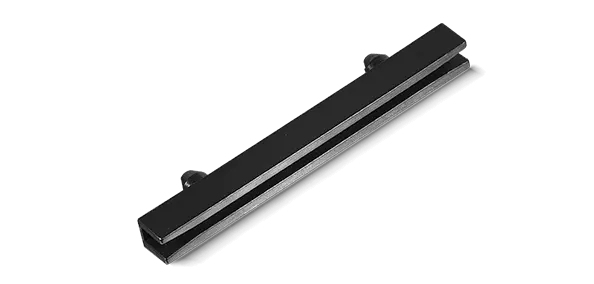

PCB guide ELBH

Plug-in vertical PCB guide in lengths 63.5 to 203.2 mm for PCB thickness 1.6 to 3.2 mm, high wall with 5.1 mm

Description
Close
Product description: PCB guide ELBH

Product variants

7 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403611
ELB H-063 PRESS-IN LEITERPLATTENFÜHRUNG
403612
ELB H-114 PRESS-IN LEITERPLATTENFÜHRUNG
403613
ELB H-152 PRESS-IN LEITERPLATTENFÜHRUNG
403614
ELB H-203-2 PRESS-IN LEITERPLATTENFÜHRUNG
407421
ELB H-114-3.2 HOCHWANDIGE
409165
ELB H-203-2-3,2 HOCHWANDIGE
411051
ELB H-152-2,4 HOCHWANDIGE
Assembly type plug plug plug plug plug plug plug
Material nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6
Colour black black black black black black black
(A) length-overall in mm 63,5 114,3 152,4 203,2 114,3 203,2 152,4
(B) Distance between fastening spigots in mm 38,1 88,9 127 177,8 88,9 177,8 127,0
(C) Distance between fastening spigots in mm - - - 88,9 - 88,9 -
Groove depth in mm 5,1 5,1 5,1 5,1 5,1 5,1 5,1
Groove width in mm 2,0 2,0 2,0 2,0 3,4 3,4 2,6
for PCB thickness 1,6 1,6 1,6 1,6 3,2 3,2 2,4
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
