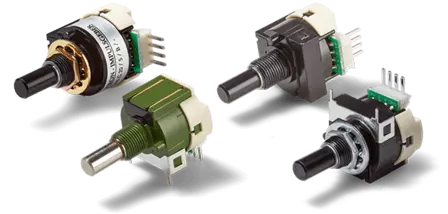

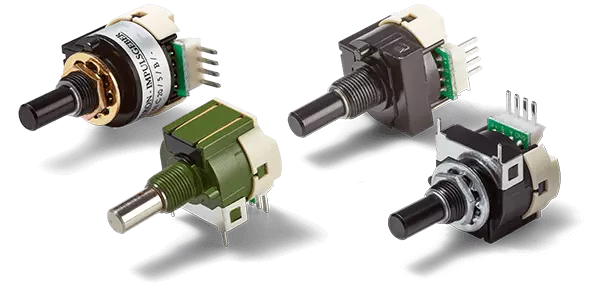

Optical Encoder M101
Optical Encoder M101

Optoelectronic Encoder M101

Incremental encoders with a very competitive price structure, a very pleasant haptic and up to 100 ppr.

  • 2 channels / TTL output
  • Resolution 20…100 ppr
  • Compact design
  • Also, available with detent and switch
incremental
Data sheet
Compare
Remember
Specifications
Sensor technology Optical Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution 20...100 ppr.
Output signal Incremental
Electrical connection Radial, Solder contacts
Protection class IP40
Mounting Bushing
Shaft diameter 6.00 mm
Housing diameter 22 mm
Housing depth min. 20 mm
Description
The combination of a die-cast housing, bushing and central ... more
Description
Close
Product description: Optoelectronic Encoder M101

The combination of a die-cast housing, bushing and central thread made of metal, combined with a detent and switch function, coupled with a very pleasant haptic, distinguishes the M101 variants C and F from other panel encoders. Despite the high quality product design, the M101 incremental encoder series has a very competitive price structure, making the product interesting for cost-sensitive applications.
