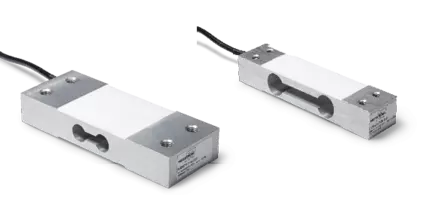

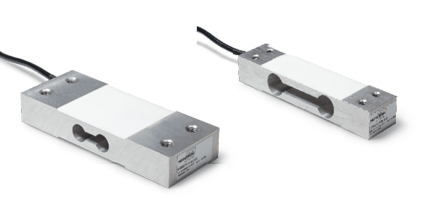

Shear beam KM302

Cost-optimized force sensor up to 2 kN

This product is not recommended for new design in - Availability on request

Take a look at our current load cells

  • Cost-optimized force sensor
  • Robust aluminium load cell
Data sheet
Specifications
Design Shear Beam
Nominal Load 30 N, 50N, 100 N, 300 N, 500 N, 1 kN, 2 kN
Direction of Force Tension and Compression
Output Signal 2,0 mV/V
Amplifier Without Amplifier
Protection Class IP65
Description
Series KM302 force sensors are double bending beam sensors and ... more
Description
Close
Product description: Shear beam KM302

Series KM302 force sensors are double bending beam sensors and due to this shape less sensitive to excentric force application. They are offered without integrated amplifier electronics (KM302 series) as well as with integrated measuring amplifier (KT302 series).
