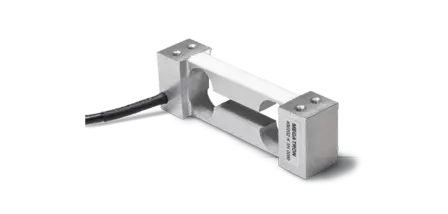

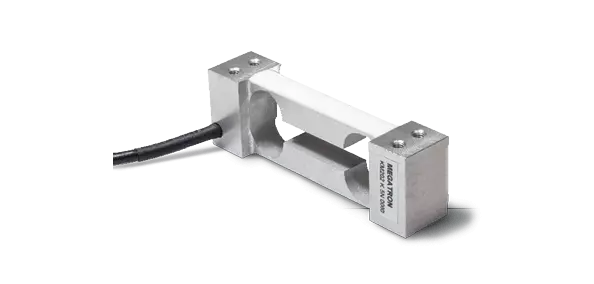

Shear beam KM202

Shear beam sensor with very small off center load error up to 100 N

This product is not recommended for new design in - Availability on request

Take a look at our current load cells

  • Robust aluminium load cell
  • Very small off center load error (typ. 0,008% / 10 mm)
Data sheet
Specifications
Design Shear Beam
Nominal Load 3 N, 5N, 10 N, 30 N, 50 N, 100 N
Direction of Force Tension and Compression
Output Signal 1,0 mV/V, 2,0 mV/V
Amplifier Without Amplifier
Protection Class IP65
Description
Series KM202 force sensors are double bending beam sensors and ... more
Description
Close
Product description: Shear beam KM202

Series KM202 force sensors are double bending beam sensors and due to this shape less sensitive to excentric force application. These sensors are offered without built in amplifier, but could be combined with our external amplifiers and panel meters.
