Potentiometric Linear Transducer MMS33

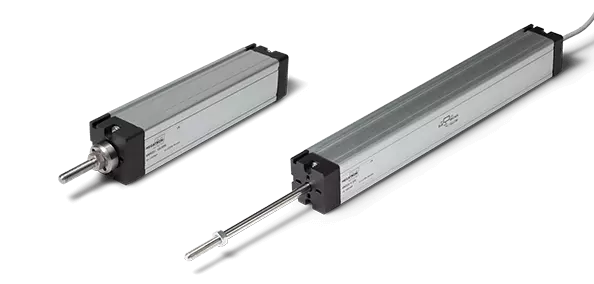

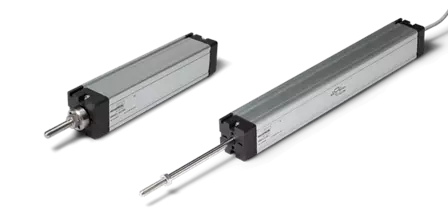

Potentiometric linear transducer Series MMS33E with electronics

Potentiometric linear transducer with integrated signal-converter. Robust design, IP60 or IP65 protected

Product is no longer available!

Take a look at our current linear sensors

  • easy electronic integration with 24VDC power supply and 0...10V or 4...20mA output signal
  • economic and proved potentiometer technology with conductive plastic
  • robust design, protection class IP60 or IP65
  • easy mechanic coupling by link ball
  • long lifespan
  • high accuracy because of high resolution and good linearity
Effective electrical travel From 50 to 900 mm in 19 variants
Sensor Technology Potentiometric
Protection Class Up to IP65 (standard IP60)
Mechanical Detection Type Front side rod without spring return
Resolution Analogue stepless
Description
Close
Product description: Potentiometric linear transducer Series MMS33E with electronics

In advancement of the standard MMS33 linear sensor series, the E-Version, MMS33E, is realized for better electronic integration. The mechanical detection of linear movement is done by a front guided push rod with accurate sleeve bearings. To avoid vertical or angular misalignment, a link ball can be mounted on the pushrod. For rough environmental conditions, the version with IP65 protection can be used. If less displacement force is necessary, we recommend the version with IP60 protection. To ensure high accuracy and long lifetime for a good price performance ratio, the potentiometric measuring principle is realized with a high-resolution conductive plastic resistance element. For facilitating electronic integration, the MMS33E series is equipped with an electronic signal converter board inside the plug housing. Instead of delicate reference voltage, a simple 24VDC±20% power supply can be used. The analogue signal is provided in the typical form with 0…10VDC or 4…20mA. To stable the output signal in the voltage version 0…10V up to 2mA can be driven (for the pure potentiometric signal only 0,001mA is conventional). In comparison to the pure potentiometric transducer, the E-version keeps quite good the true power on function and temperature stability and is EMC approved. The dimensions of the E-Version of the MMS33E are not changed to the standard version. The MMS33E series is available with plug or cable connection.
