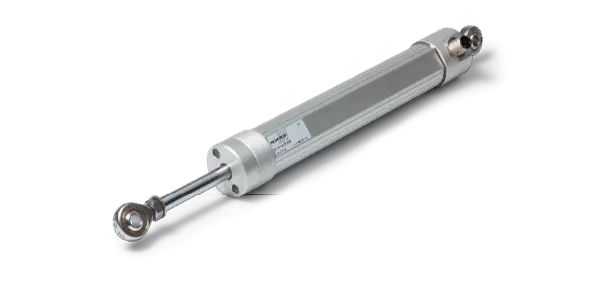

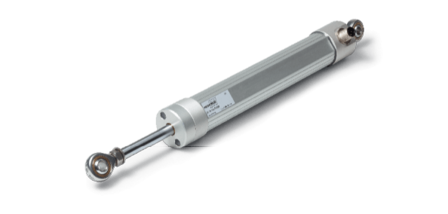

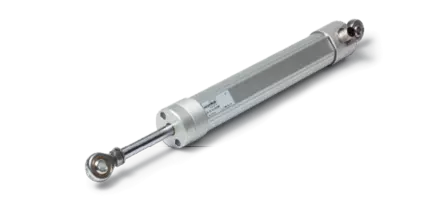

Potentiometric Linear Transducer RC35E with Electronics

Potentiometric linear transducer with integrated signal-converter. Robust design, IP65 protected

Product is no longer available!

Take a look at our current linear sensors

  • easy electronic integration with 24VDC power supply and 0...10V or 4...20mA output signal
  • economic and proved potentiometer technology with conductive plastic
  • robust design, IP65 protected
  • easy mechanic coupling by ball joints on front and rear side
  • long lifespan
  • high accuracy because of high resolution and good linearity
Specifications
Effective electrical travel From 50 to 750 mm in 16 variants
Sensor Technology Potentiometric
Protection Class IP65
Resolution Analogue stepless
Supply voltage Potentiometric
Description
In advancement of the standard RC35 linear sensor series, the ... more
Description
Close
Product description: Potentiometric Linear Transducer RC35E with Electronics

In advancement of the standard RC35 linear sensor series, the E-Version, RC35E, is realized for better electronic integration. The mechanical detection of linear movement is done by a front guided push rod with accurate sleeve bearings. For easy mechanical coupling, the sensor is equipped with strong ball joints. Due to his robust design in IP65 protection, the sensor can be used in rough environmental conditions. To ensure high accuracy and long lifetime for a good price performance ratio, the potentiometric measuring principle is realized with a high-resolution conductive plastic resistance element. For facilitating electronic integration, the RC35E series is equipped with an electronic signal converter board inside the plug housing. Instead of delicate reference voltage, a simple 24VDC±20% power supply can be used. The analogue signal is provided in the typical form with 0…10VDC or 4…20mA. To stable the output signal in the voltage version 0…10V up to 2mA can be driven (for the pure potentiometric signal only 0,001mA is conventional). In comparison to the pure potentiometric transducer, the E-version keeps quite good the true power on function and temperature stability and is EMC approved. The dimensions of the E-Version of the RC35E are not changed to the standard version. The RC35E series is available with plug or cable connection.
