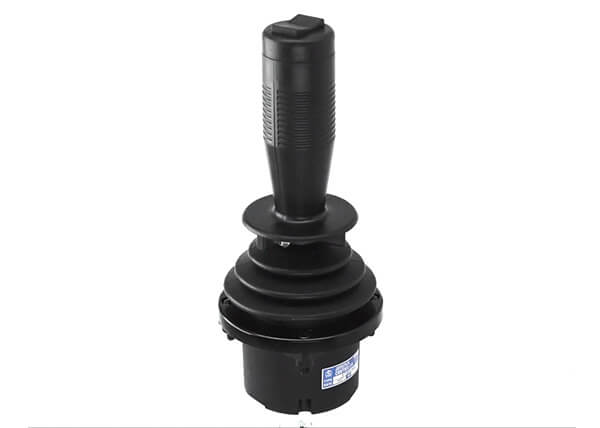

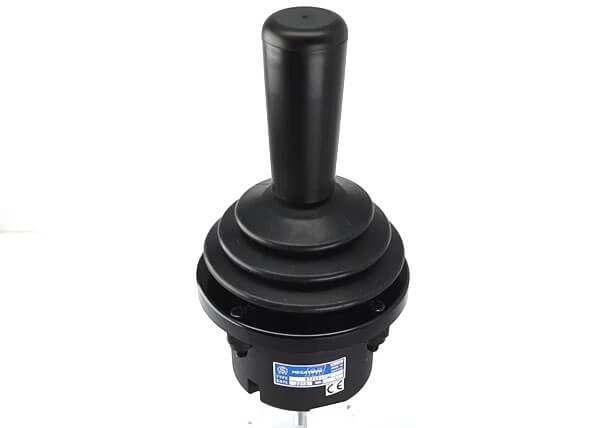

Hand Joystick Series 870

Highest quality hand joystick with compact installation dimensions

  • Particularly high quality hand joystick with stock grip handle
  • Robust design, predestined for heavy duty applications
  • Lifespan of over 5 million movements for long-term reliable operation
  • Small installation depth of <49 mm for space-saving installation in control panels and driver's cabs
  • Optionally with button, rocker switch or z axis to control additional functions
  • 12-pin connector for easy installation in series production (optionally also with cable outlet)
  • Protection class up to IP65
Axes 2, 3
Interface Analog
Size Hand Joystick
Return Mechanism Spring Return
Technology Hall Effect
Housing depth under panel ≤ 49 mm
Number of Pushbuttons 0, 1
Sealing above panel IP65
Limiter plate Square
Description
Close
Product description: Hand Joystick Series 870

The medium-sized hand joysticks of the 870 series with stock grip handle were specially developed for the multi-axis control of machines in demanding applications with highest requirements on quality and feel.

The joysticks are a guarantee for success in demanding applications with up to three axes, where quality, durability and reliability are paramount. The precision manufacturing of the joystick results in a particularly high-quality feel that conveys a safe operating feeling and enables the user to precisely control movements in several dimensions.

Thanks to the non-contact Hall effect technology and the optional double outputs, the joysticks are extremely reliable and safe to use even in the toughest conditions. The joystick is electrically connected via a 12-pin connector, which enables easy installation. The installation depth of <49 mm is particularly advantageous when space is limited.
