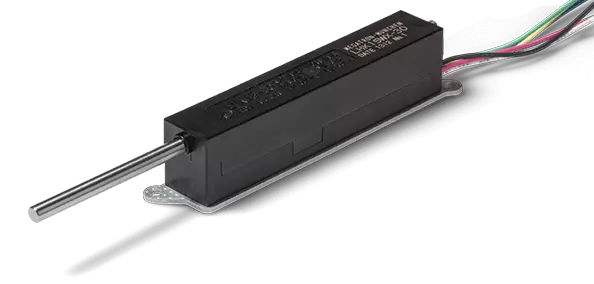

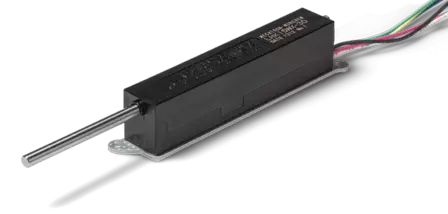

Contactless Hall-Effect Linear Transducer LHK
Magnetic linear transducer for 30 mm strokes is ideal for detecting small, oscillating movements in automatically controlled systems
- Long lifespan >100 million movements
- No wear-induced degradation of signal quality
- Reliable measurement even at vibration
- Resolution: 12 bit
- Analogue output: 0,5…4,5 V
- Enables wire break detection and short-circuit detection
- Supply voltage: 5 V
Effective electrical travel | 30 mm |
---|---|
Sensor Technology | Magnetic (Hall Effect) |
Protection Class | IP65 |
Resolution | Digital stepped 12 bits |
Mechanical Detection Type | Front and rear side rod with/without spring return |
Electrical Outlet Type | Strands |
Mounting | Screw Mounting / Bore Holes |
Electr. output signal | 0.5...4.5 V ratiometric |
Ind. linearity (best) | ±0.5 % |
Actuating speed | ≤ 1.76 m/s |
Max. operating temperature | +105 °C |
Min. operating temperature | -40 °C |
Minimum overall length | Small (< 15 cm) |
Supply voltage | 5 V |
The LHK Hall effect linear sensor is ideal for detecting small, dynamic movements in automatically controlled systems without loss of accuracy due to wear. It offers an excellent price/performance ratio compared to other non-contact measurement principles. The sensor provides an active output signal, eliminating the need for complicated signal conversion.
