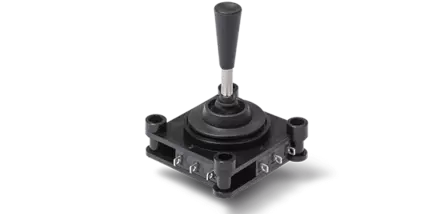

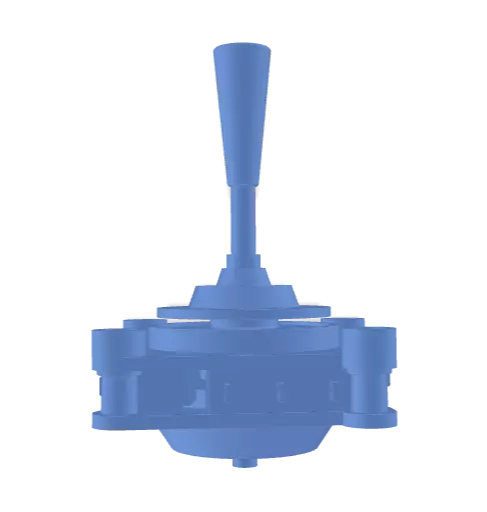

Switch Stick 851
Switch Stick 851

Switch Stick 851

Economical switch stick for one- or two-dimensional control

  • Stable stainless steel shaft
  • Small installation depth < 24 mm
  • Spring return to centre position
  • IP class 65 (above panel)
  • Good cost/performance ratio
SwitchProtection class IP65
Data sheet
Compare
Remember
Specifications
Size Finger Joystick
Technology Switch
Axes 1, 2
Return Mechanism Spring Return
Output interface Switch
Housing depth under panel ≤ 20 mm
Sealing above panel IP65
Limiter plate Delivered with square limiter, additional limiter elements supplied
Description
Reliable switching with spring return mechanism thanks to the ... more
Description
Close
Product description: Switch Stick 851

Reliable switching with spring return mechanism thanks to the 851 joystick with good price/performance ratio

The 851 switch sticks series are designed to be both functional and space-saving. Optimized mechanics, including a stainless steel metal shaft, combined with micro switches provide reliable switching for currents up to 10 A and voltages up to 240 V, while taking up less than 24 mm of space below the panel. The spring return mechanism ensures safe control of the application. Both a cross- and one-dimensional limiter are supplied with the shipment. Protection above the panel is IP65. Gold-plated contacts are available on request for use in corrosive environments.
