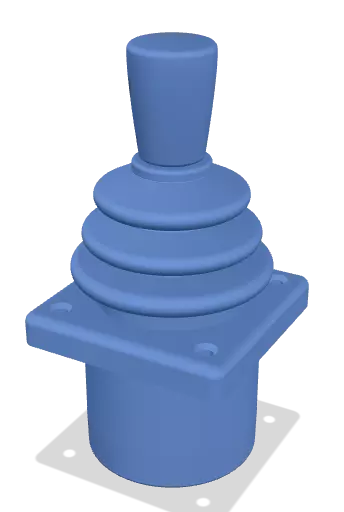

Switch Stick 841
Switch Stick 841

Switch Stick 841

Rugged switch stick for 1 to 2 axes with high quality switches for various switching scenarios

  • Particular robust switch stick
  • Single step or progressive switching
  • Switching up to 1 A with gilded contacts
  • Center detect switch optional
  • Protection up to IP65 (above panel)
  • High lifespan

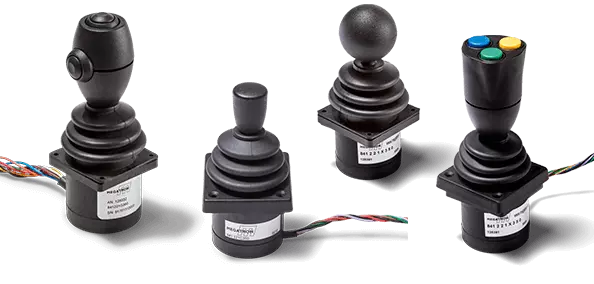

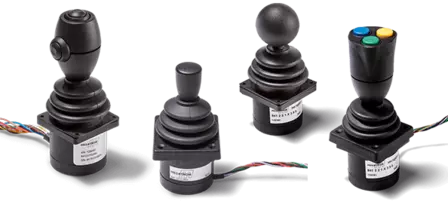

  • Large selection of handles, also with push buttons
SwitchProtection class IP65
Data sheet
Compare
Remember
Specifications
Size Finger Joystick
Technology Switch
Axes 1, 2
Return Mechanism Spring Return
Output interface Switch
Housing depth under panel ≤ 31 mm
Number of Pushbuttons 0, 3, 1, 2
Sealing above panel Up to IP65 depending on handle configuration
Limiter plate Plus, Slotted y direction (1 axis), Square, Round, Diamond (square, rotated 45°)
Description
The 841 series, a family of rugged finger switch sticks, leave ... more
Description
Close
Product description: Switch Stick 841

The 841 series, a family of rugged finger switch sticks, leave nothing to be desired in switching applications

The 841 series finger joysticks are fitted with high quality microswitches. Single-pole, double-pole or progressive switching - the robust mechanism guarantees a long service life, even under intensive use. Despite its small size, the series is suitable for control operations in safety-critical applications. A variety of handles are available, including those with additional push button switches.

  • Different handle materials available: Nylon, Aluminium, ABS, and Delrin
  • Maximum switching voltage: 125 V
  • Switching contacts: gold-plated silver
