Finger Joystick TRY17
Finger Joystick TRY17

Finger Joystick TRY17

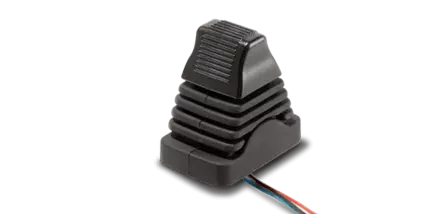

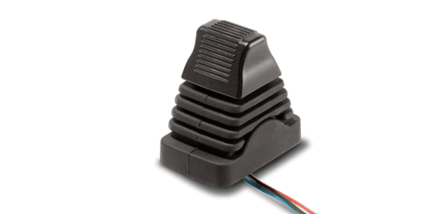

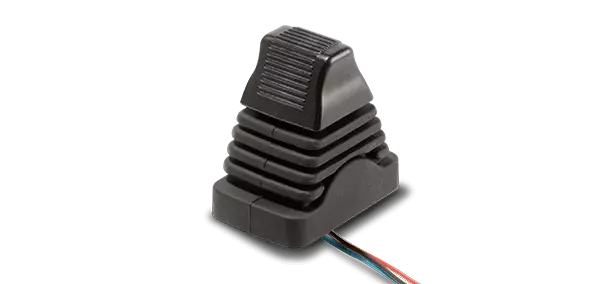

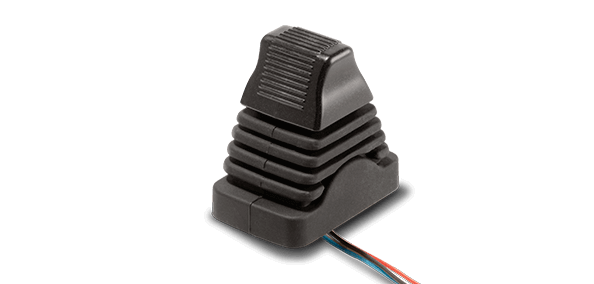

High quality single axis paddle joystick with tight rubber boot sealing all relevant parts to the panel

  • Single axis joystick / paddle controller
  • Fully sealed for toughest usage conditions (IP67)
  • Contact-less Hall effect sensors
  • Dual outputs optional
  • Immune to solidifying substances such as cement dust
VDCProtection class IP67
Data sheet
Compare
Remember
Specifications
Size Finger Joystick
Technology Hall Effect
Axes 1
Return Mechanism Spring Return
Output interface Analogue voltage output
Housing depth under panel 0...≤10 mm
Number of Pushbuttons 0
Sealing above panel IP67
Limiter plate Slotted y direction (1 axis)
Supply voltage 5 V
Description
The rugged TRY17 joystick is the ideal choice for single axis ... more
Description
Close
Product description: Finger Joystick TRY17

The rugged TRY17 joystick is the ideal choice for single axis applications where space is limited and safety requirements are high

The TRY17 series is designed for the harshest environments, withstanding salt, mist, water, lubricants and most chemicals. This is made possible by a tight rubber boot that seals all relevant parts to the panel.
These are high precision, high quality paddle type joysticks. Non-contact Hall technology combined with a smooth and easy to use mechanism results in a long-lasting and reliable joystick suitable for all (mild to extreme) environments in mobile remote controls, cleaning machines, material handling and agricultural vehicles.
