Drawing distance tubes LPR90

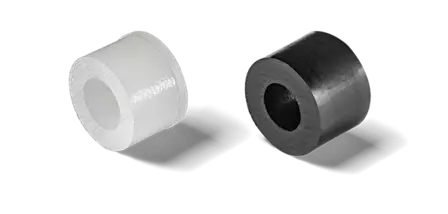

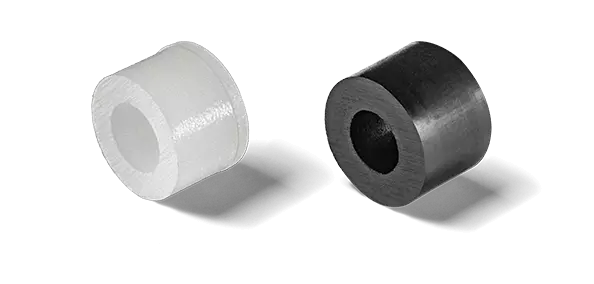

Distance tube LPR90

PCB distance tube LPR90

Universal insulating tube with different inner diameters and distance lengths.

Description
Close
Product description: PCB distance tube LPR90

Product variants

22 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404516
LPR 9040-N
404517
LPR 9041-N
404519
LPR 9043-N
404520
LPR 9044-N
404522
LPR 9046-N
404524
LPR 9048-N
404528
LPR 9052-SW
404535
LPR 9060-SW
404536
LPR 9061-SW
407338
LPR 9066-SW
408301
LPR 9063-SW
408587
LPR 9063-N
408602
LPR 9080-N
408603
LPR 9080-SW
408614
LPR 9091-SW
408620
LPR 9096-N
408621
LPR 9096-SW
408623
LPR 9098-N
408669
LPR 9098-SW
409677
LPR 9048-SW
409678
LPR 9060-N
409679
LPR 9061-N
Distance height in mm 3,0 5,0 3,0 5,0 3,0 5,0 10,0 4,0 5,0 15,0 5,0 5,0 4,0 4,0 4,0 5,0 5,0 5,0 5,0 5,0 4,0 5,0
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66 nylon 66 nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66 nylon 66, fibre-glass reinforced nylon 66 nylon 66, fibre-glass reinforced nylon 66, fibre-glass reinforced nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB
Colour natural natural natural natural natural natural black black black black black natural natural black black natural black natural black black natural natural
Ø Inner in mm 2,4 2,4 2,7 2,7 3,2 3,2 4,0 4,3 4,3 5,1 5,0 5,0 6,0 6,0 6,3 7,0 7,0 8,0 8,0 3,2 4,3 4,3
Ø Outer in mm 4,5 4,5 5,0 5,0 7,0 7,0 6,0 10,0 10,0 8,0 14,0 14,0 10,0 10,0 20,0 14,0 14,0 14,0 14,0 7,0 10,0 10,0
