Drawing distance tubes ELBM3

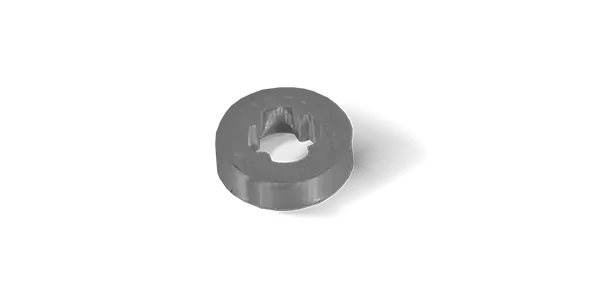

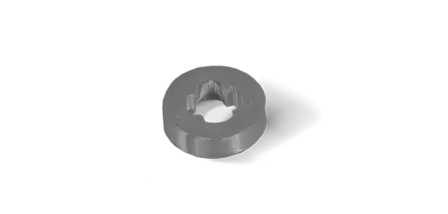

Distance tube ELBM3

PCB distance tube ELBM3

Distance tube with fixing blade for pre-assembling of M3 screws. Available in the distance length from 1 to 31 mm

Description
Close
Product description: PCB distance tube ELBM3

Product variants

17 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403661
ELB M3-2,0
403662
ELB M3-4,0
403663
ELB M3-6,0
403664
ELB M3-8,0
403665
ELB M3-10,0
403666
ELB M3-12,0
403667
ELB M3-14,0
403668
ELB M3-16,0
403669
ELB M3-18,0
403670
ELB M3-20,0
403671
ELB M3-22,0
403672
ELB M3-24,0
403673
ELB M3-26,0
404298
ELB M3-3,0
404381
ELB M3-5,0
405271
ELB M3-21,0
405467
ELB M3-11,0
Distance height in mm 2,0 4,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 22,0 24,0 26,0 3,0 5,0 21,0 11,0
Model Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull Hull
Material PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC PVC
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour grey grey grey grey grey grey grey grey grey grey grey grey grey grey grey grey grey
Ø Inner in mm 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7 3,7
Ø Outer in mm 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4 6,4
