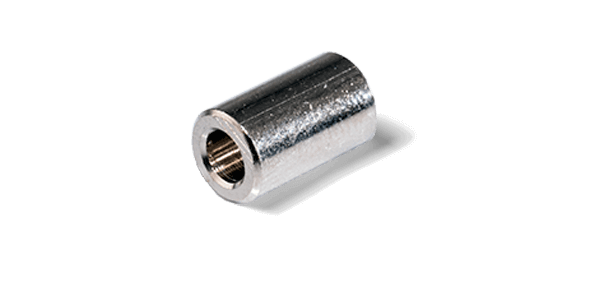

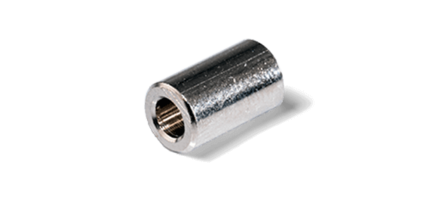

Distance tube PEGM made of metal
Round distance tube (without thread) in lengths from 1 to 20 mm, with inner diameter suitable for M2 to M6
| 404582 PEG M-M3-3 | 404583 PEG M-M3-4 | 404584 PEG M-M3-5 | 404585 PEG M-M3-6 | 404586 PEG M-M3-7 | 404587 PEG M-M3-8 | 404588 PEG M-M3-9 | 404589 PEG M-M3-10 | 404590 PEG M-M3-11 | 404591 PEG M-M3-12 | 404592 PEG M-M3-13 | 404593 PEG M-M3-14 | 404594 PEG M-M3-15 | 405729 PEG M-M3-2 | 406215 PEG M-M3-16 | 406216 PEG M-M3-17 | 406217 PEG M-M3-18 | 406218 PEG M-M3-19 | 406219 PEG M-M3-20 | 406220 PEG M-M3-21 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 3,0 | 4,0 | 5,0 | 6,0 | 7,0 | 8,0 | 9,0 | 10,0 | 11,0 | 12,0 | 13,0 | 14,0 | 15,0 | 2,0 | 16,0 | 17,0 | 18,0 | 19,0 | 20,0 | 21,0 |
| Model | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull | Hull |
| Material | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass | brass |
| Colour | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured | brass-coloured |
| Ø Inner in mm | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 | 3,2 |
| Ø Outer in mm | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 | 6,0 |
