Drawing of cover LPR204
hole plug LPR204

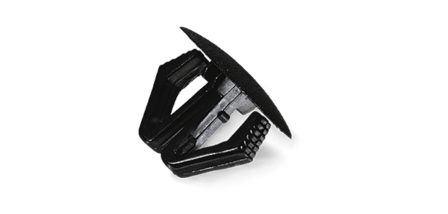

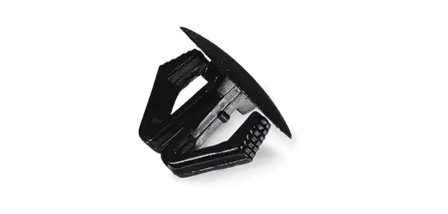

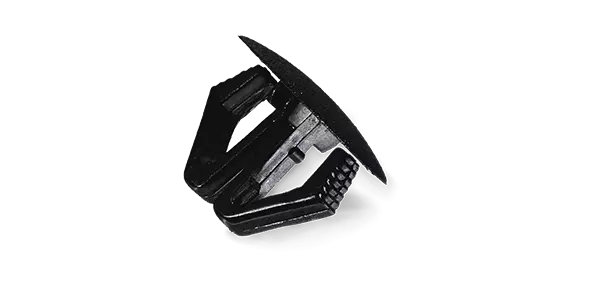

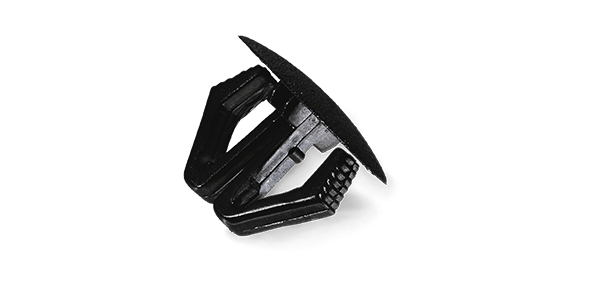

Blind hole cover LPR204

Blind hole cover to cover holes from Ø9.5 up to Ø47.5 mm for panels with 0.8 up to 3.2 mm

Description
Close
Product description: Blind hole cover LPR204

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
405137
LPR 2040
405138
LPR 2041
405139
LPR 2042
405140
LPR 2043
Model Blind hole cover Blind hole cover Blind hole cover Blind hole cover
Material polyoxymethylene (POM) polyoxymethylene (POM) polyoxymethylene (POM) polyoxymethylene (POM)
Colour black black black black
Ø Outer in mm 16,0 18,5 21,5 25,0
Hole Diameter for mounting in mm 9,5 - 11 11,0 - 14,3 15,0 - 17,5 18,4 - 20,6
Panel thickness in mm 0,8 - 3,2 0,8 - 3,2 0,8 - 3,2 0,8 - 3,2
Head heigth in mm 1,6 1,6 1,6 1,6
E 12,6 12,0 12,0 12,0
Fire protection class UL 94 HB UL 94 HB UL 94 HB UL 94 HB
Temperature range -40°C - +90°C -40°C - +90°C -40°C - +90°C -40°C - +90°C
