Drawing of cover LPR1560
Blind hole cover LPR1560

Blind hole cover LPR1560

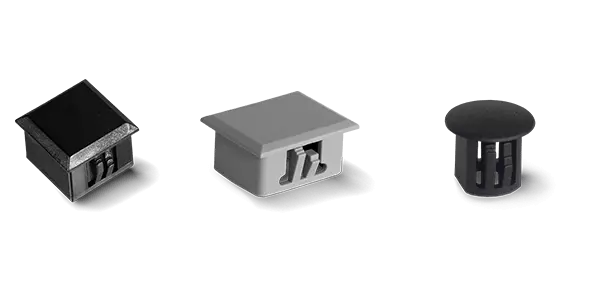

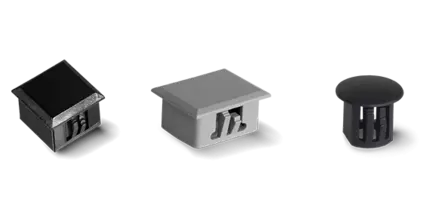

Blind hole covers LPR1560 in three designs. E.g. as LC-duplex cover against dust and dirt

Description
Close
Product description: Blind hole cover LPR1560

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
408817
LPR 1560
411143
LPR 1570-SC LOCHABDECKUNG
411144
LPR 1571-SC LOCHABDECKUNG
411145
LPR 1572-SC LOCHABDECKUNG
411146
LPR 1573-ST LOCHABDECKUNG
411147
LPR 1580-RJ LOCHABDECKUNG
Model Cover cap Cover cap Cover cap Cover cap Cover cap Cover for RJ plug-in connector
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Colour black black black black black black
Widths in mm 13,2 12,8 12,8 25,8 Ø 9,2 14,7
Depth in mm 13,2 9,3 9,3 9,3 7,7 19,1
Height in mm 9,0 9,0 9,0 9,0 9,0 9,0
Hole Diameter for mounting in mm 13,5 x 13,5 13,0 x 9,5 13,0 x 9,5 26,0 x 9,5 Ø 9,4 x 7,9 19,5 x 15,0
Head heigth in mm 2,0 1,5 1,5 1,5 1,5 1,5
A-head diameter in mm 15,0 x 15,0 21,5 x 12,0 16,0 x 12,0 34,8 x 12 Ø 12,0 17,7 x 22,0
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Type Type 1 Type 1 Type 1 Type 1 3 Type 2
