Test pin EHI1201

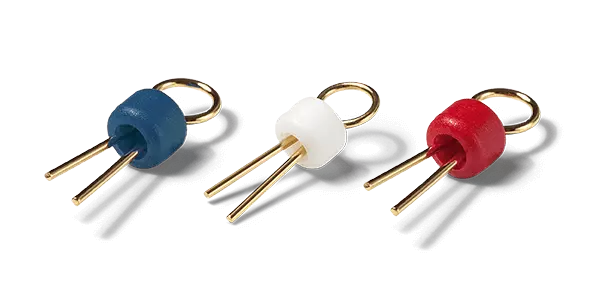

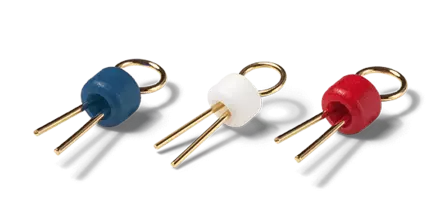

Test pin with insulating glass body in various colours for soldering onto the PCB for measuring points, adjustment points and much more.

Product variants

3 variant(s) found
Can't find the product you want in the list? It is in the drawing! Just click here: Product enquiry
402571
EHI 1201 - TEST PIN ROT
403027
EHI 1201 - TEST PIN BLAU
403028
EHI 1201 - TEST PIN WEISS
Widths in mm 3,1 3,1 3,1
Height in mm 5,0 - 6,0 5,0 - 6,0 5,0 - 6,0
Material Phosphor Bronze Wire, gold plated Phosphor Bronze Wire, gold plated Phosphor Bronze Wire, gold plated
Colour red blue white
Ø Mounting hole in mm 0,9 - 1,0 0,9 - 1,0 0,9 - 1,0
Type Type 2 Type 2 Type 2
