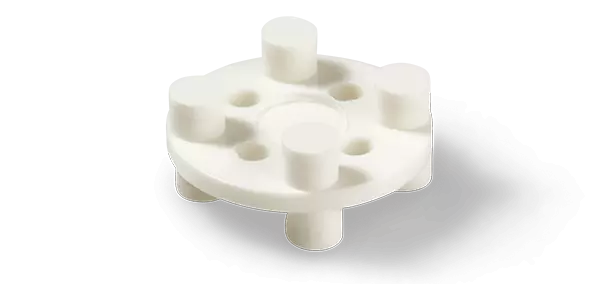

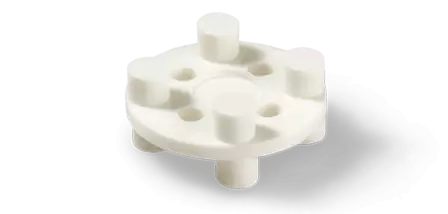

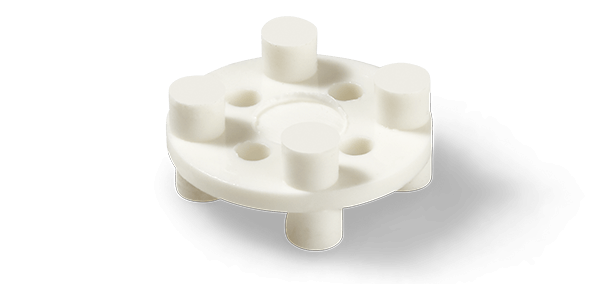

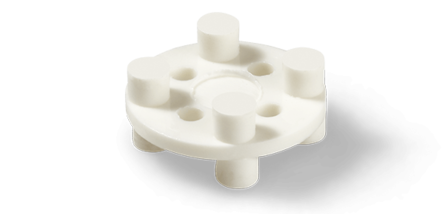

Component mount ELBTO5

Component bracket with good air circulation in various heights for discrete components such as capacitors, resistors and many more.

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403649
ELB TO-5-050
403650
ELB TO-5-070
403651
ELB TO-5-100
403652
ELB TO-5-130
403653
ELB TO-5-150
403654
ELB TO-5-200
Height in mm 1,3 1,8 2,5 3,3 3,8 5,1
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Colour white white white white white white
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Leads 4 4 4 - 4 -
Shape round round round round round round
