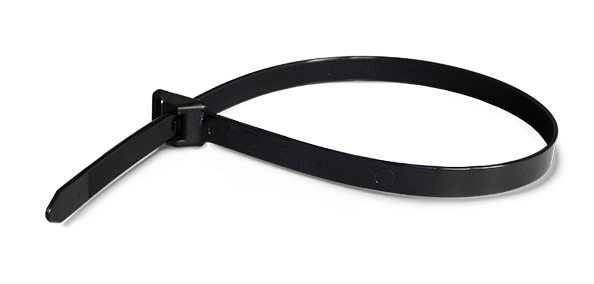

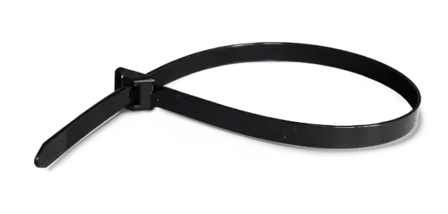

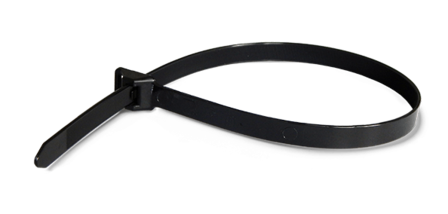

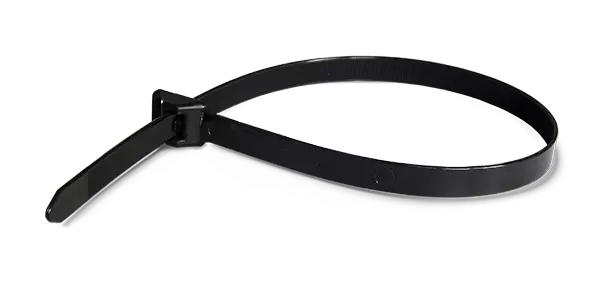

Cable tie PRT
Heavy-duty cable tie up to 12.7 mm wide, bundle Ø from 1.5 to 304 mm and tensile strength up to 1112 N. Fastener is detachable
| 400113 PRT2S-C | 400119 PRT6EH-C0 | 405713 PRT2EH-C0 | 407416 PRT 3S-C | 407784 PRT1.5S-C | 408163 PRT 3S-C0 | 408670 PRT5EH-C | 408683 PRT5EH-C0 | 409267 PRT1.5S-C0 | 411501 PRT2S-C0 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Material | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 | polyamide 6.6 |
| Temperature range | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C | -60°C - +85°C |
| Colour | natural | black | - | natural | natural | black | natural | black | black | black |
| Cable ties characteristics | Ends straight | Ends straight | Ends straight | Ends straight | Ends straight | Ends straight | Ends straight | Ends straight | Ends straight | Ends straight |
| Length in mm | 188 | 564 | 229 | 292 | 160 | 292 | 511 | 511 | 160 | 188 |
| Ø Bundle/ Cable in mm | 1,5 - 48,0 | 12,7 - 152,4 | 12,7 - 51,0 | 1,5 - 76,0 | 1,5 - 38,0 | 1,5 - 76,0 | 12,7 - 127,0 | 12,7 - 127,0 | 1,5 - 38,0 | 1,5 - 48,0 |
| Tensile strength in kg | - | 113,4 | - | - | - | - | - | - | - | - |
| Widths in mm | 4,8 | 12,7 | 12,7 | 4,8 | 4,8 | 4,8 | 12,7 | 12,7 | 4,8 | 4,8 |
| Lock type | - | removable | - | removable | - | - | - | - | - | removable |
