Drawing cable tie BTX
Cable tie BTX

Cable tie BTX

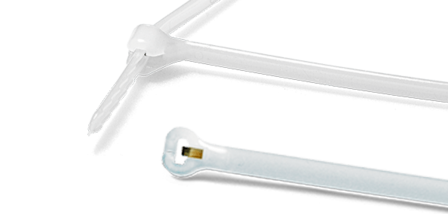

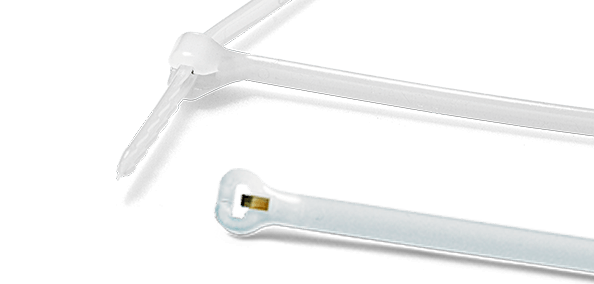

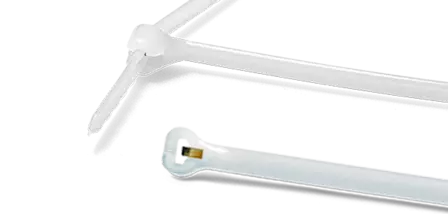

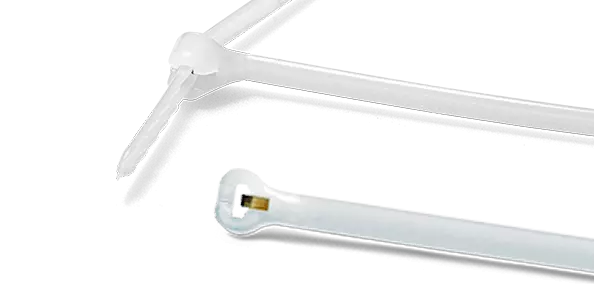

Cable tie with metal nose in the lock, bundle diameter from 0.8 to 102 mm and tensile strength up to 222 N

Description
Close
Product description: Cable tie BTX

Product variants

15 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407381
BT4M-C KABELBINDER, NATUR
407959
KABELBINDER BT4S-M0 1000ST
407964
KABELBINDER BT1.5I-M 1000ST
407965
KABELBINDER BT1M-M 1000ST
407967
KABELBINDER BT3I-M 1000ST
408031
KABELBINDER BT2I-M0
408830
KABELBINDER BT1M-M0 1000ST
408831
KABELBINDER BT2M-M0
409141
KABELBINDER BT4M-M 1000ST
409142
KABELBINDER BT2M-M 1000ST
409162
KABELBINDER BT2I-M
409177
KABELBINDER BT2S-M 1000ST
409207
KABELBINDER BT4S-M 1000ST
410182
KABELBINDER BT1.5M-M0
410213
KABELBINDER BT3I-M0 1000ST
Material polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C
Colour natural black natural natural natural black black black natural natural natural natural natural black black
Cable ties characteristics Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends
Length in mm 361 384 155 102 287 203 102 201 361 201 203 203 384 160 287
Ø Bundle/ Cable in mm 1,5 - 102 1,5 - 102 0,8 - 38 1,5 - 23 0,8 - 76 0,8 - 51 1,5 - 23 1,5 - 51 1,5 - 102 1,5 - 51 0,8 - 51 1,5 - 51 1,5 - 102 1,5 - 38 0,8 - 76
Tensile strength in kg 8,16 22,68 18,14 8,16 18,14 18,14 8,16 8,16 8,16 8,16 18,14 22,68 22,68 8,16 18,14
Widths in mm 2,4 4,7 3,6 2,4 3,6 3,6 2,4 2,4 2,4 2,4 3,6 4,7 4,7 2,4 3,6
Lock type locking locking locking locking locking locking locking locking locking locking locking locking locking locking locking
