Cable tie mount TMX

Cable tie mount TMX

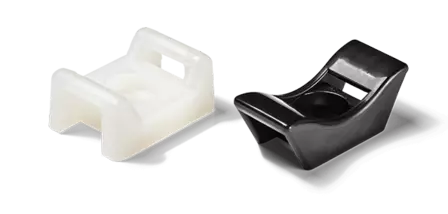

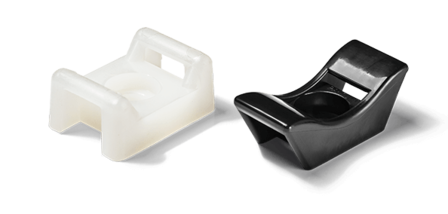

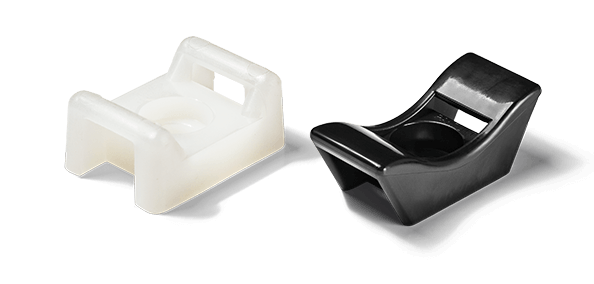

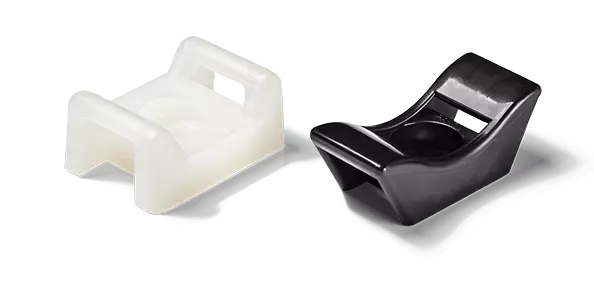

Mounting base in 2 designs for cable ties from approx. 5 mm up to approx. 13 mm width. Sockets available for screw mounting.

Description
Close
Product description: Cable tie mount TMX

Product variants

3 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407789
TM2S8-M KABELBINDERHALTER
408516
TM3 S8-C KABELBINDERHALTER
409172
TMEH-S25-C0 KABELBINDERHALTER
Assembly type srewable srewable srewable
Type Type 1 Type 1 Type 2
Material polyamide 6.6 polyamide 6.6 polyamide 6.6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -60°C - +85°C -60°C - +85°C -60°C - +85°C
Colour natural natural black
Ø Mounting hole in mm M4 M4 M6
Widths in mm 16 21,9 41,1
Height in mm 6,99 9,4 15,5
Depth in mm 10,8 15,5 18,3
For cable ties with width 5,46 8,1 13,2
