Drawing cable tie mount LPR549
Cable tie mount LPR549

Cable tie mount LPR549

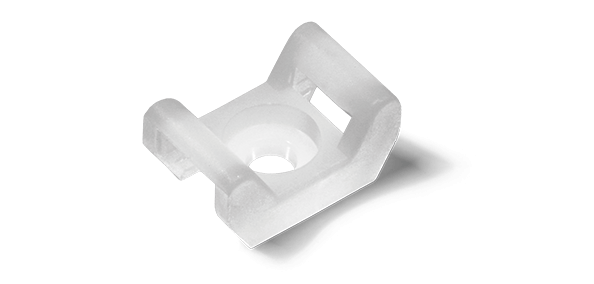

Mounting base for cable ties with 4.8 or 9 mm width. Sockets available for screw mounting.

Description
Close
Product description: Cable tie mount LPR549

Product variants

2 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
405249
LPR 5496 SCHRAUBSOCKEL
405250
LPR 5498 SCHRAUBSOCKEL
Assembly type srewable srewable
Type 2 ways 2 ways
Material polyamide 6.6 polyamide 6.6
Fire protection class UL 94 V-2 UL 94 V-2
Temperature range -40°C - +85°C -40°C - +85°C
Colour natural natural
Ø Mounting hole in mm 5,0 3,5
Widths in mm 22,5 15
Height in mm 11 7
Depth in mm 14,6 9,5
For cable ties with width 9,3 5

Price / availability enquiry
